FEATURED
2024 Ram 5500 Adrenalin AWOL Klause
$450,000
Year
2024Make
RAMModel
5500Odometer
4,446Engine
6.7L Cummins Turbo DieselFuel Type
dieselTransmission
automaticDrivetrain
4×4VIN / Chassis #
Upon RequestSeller
Adrenalin IndustriesLocation
Richmond, UTTitle Status

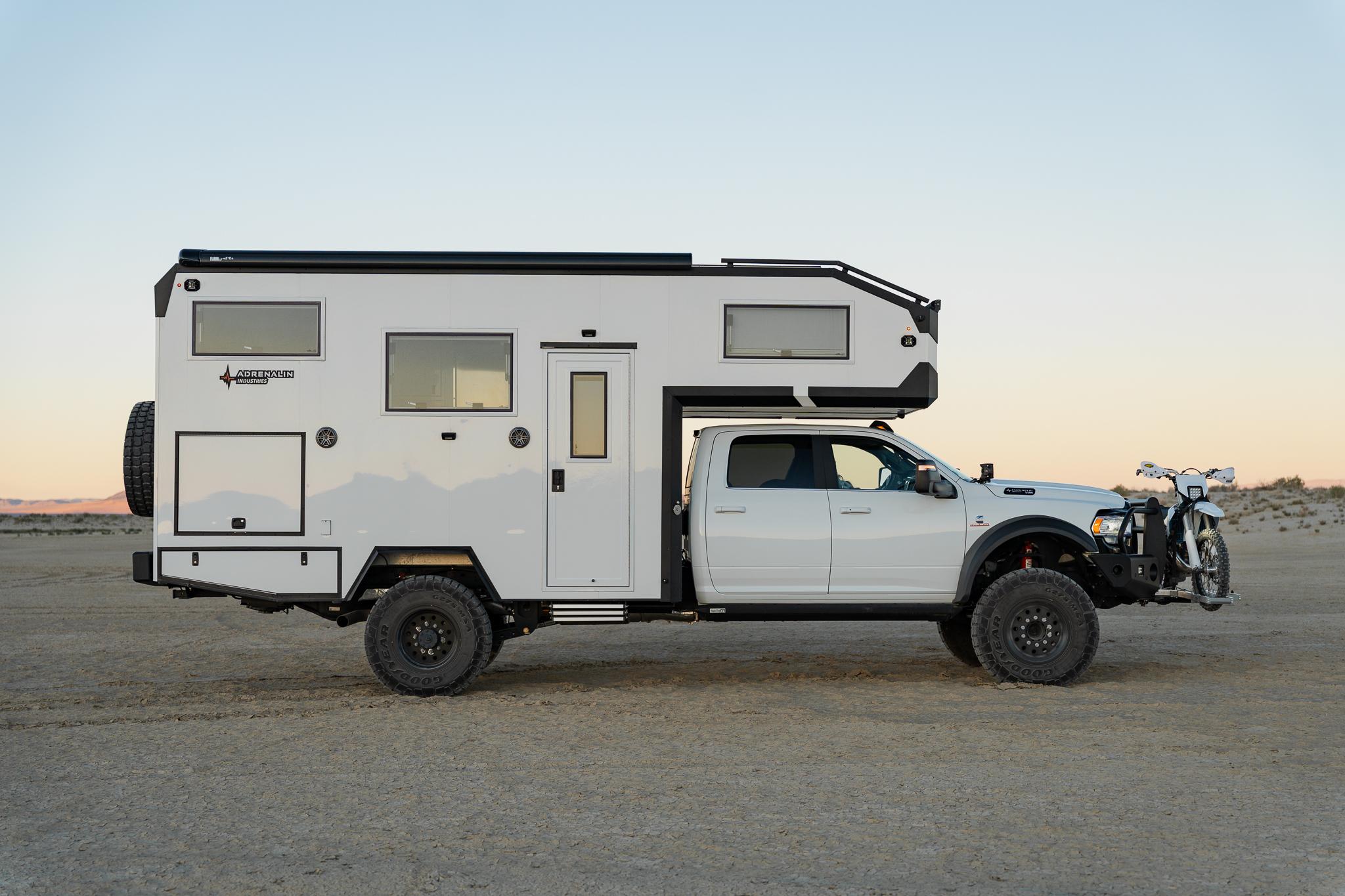

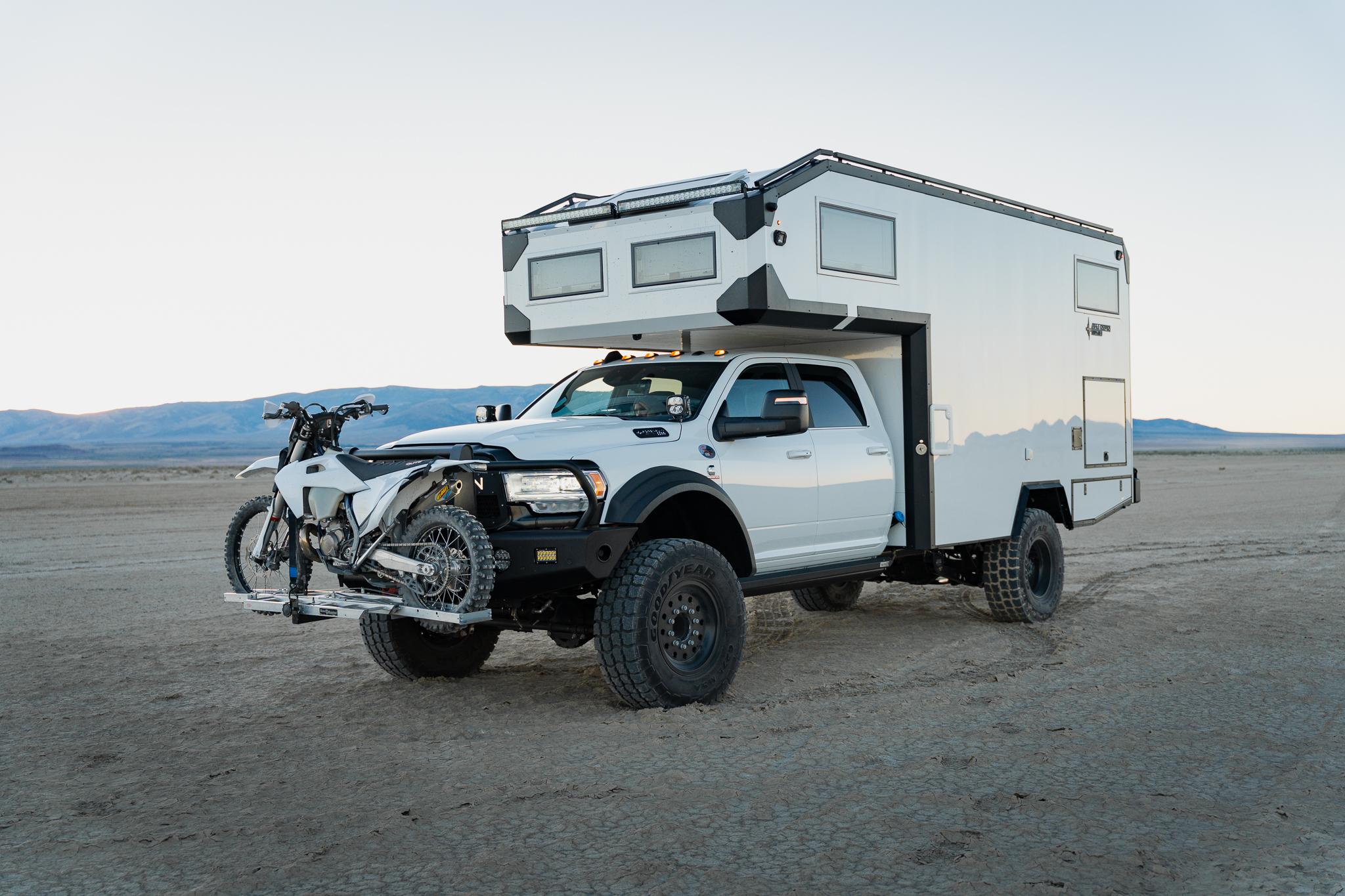

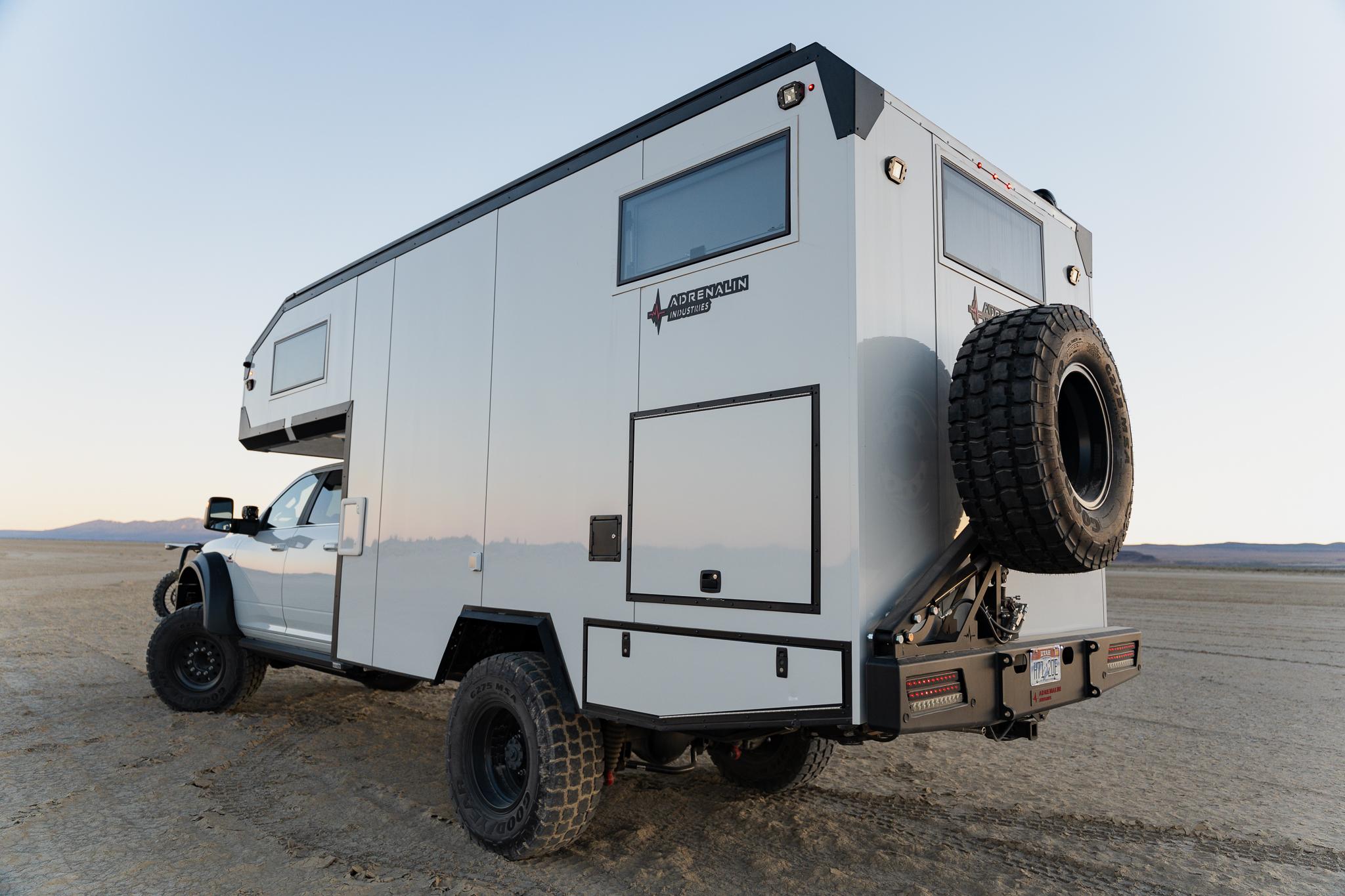

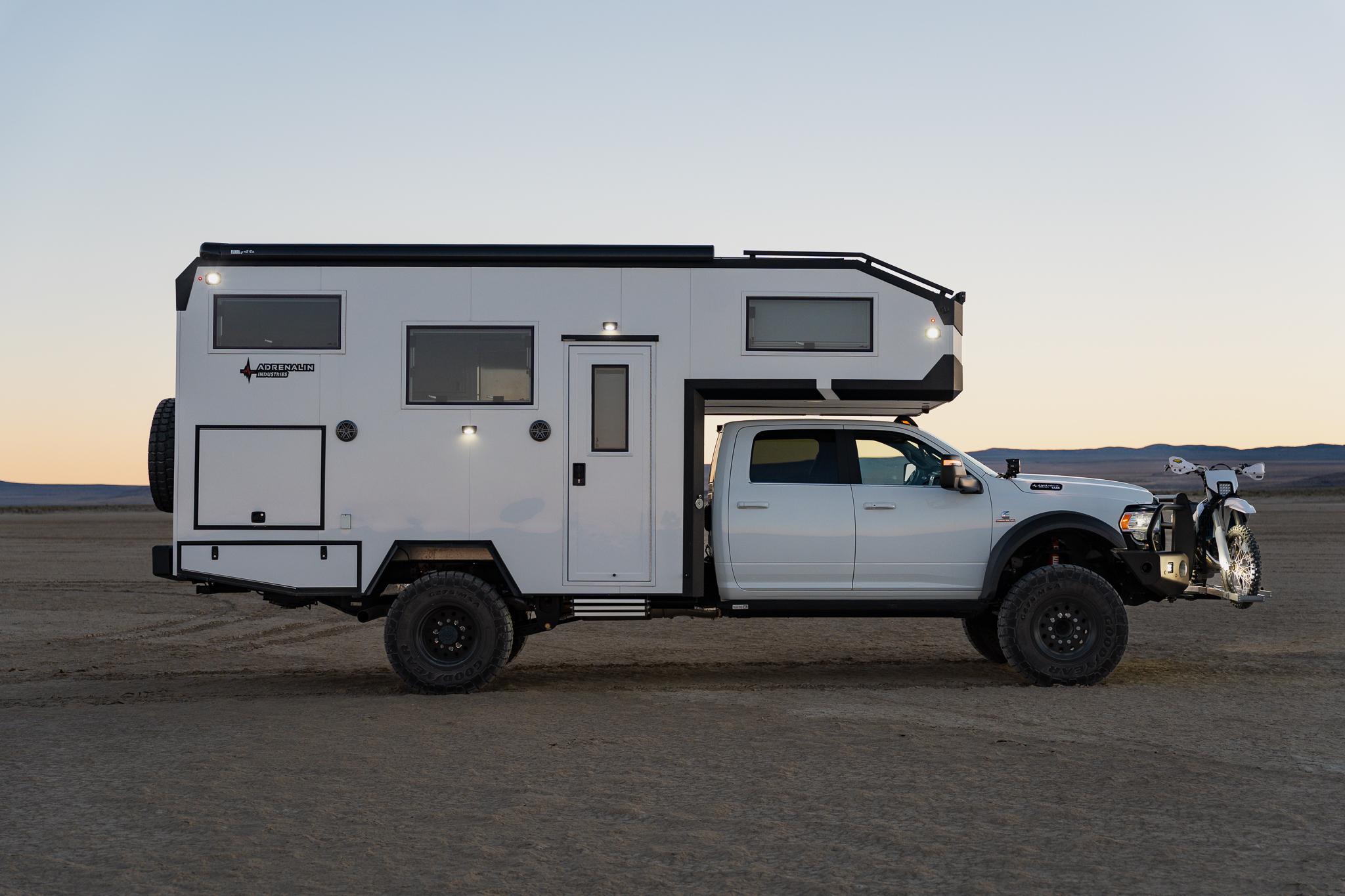

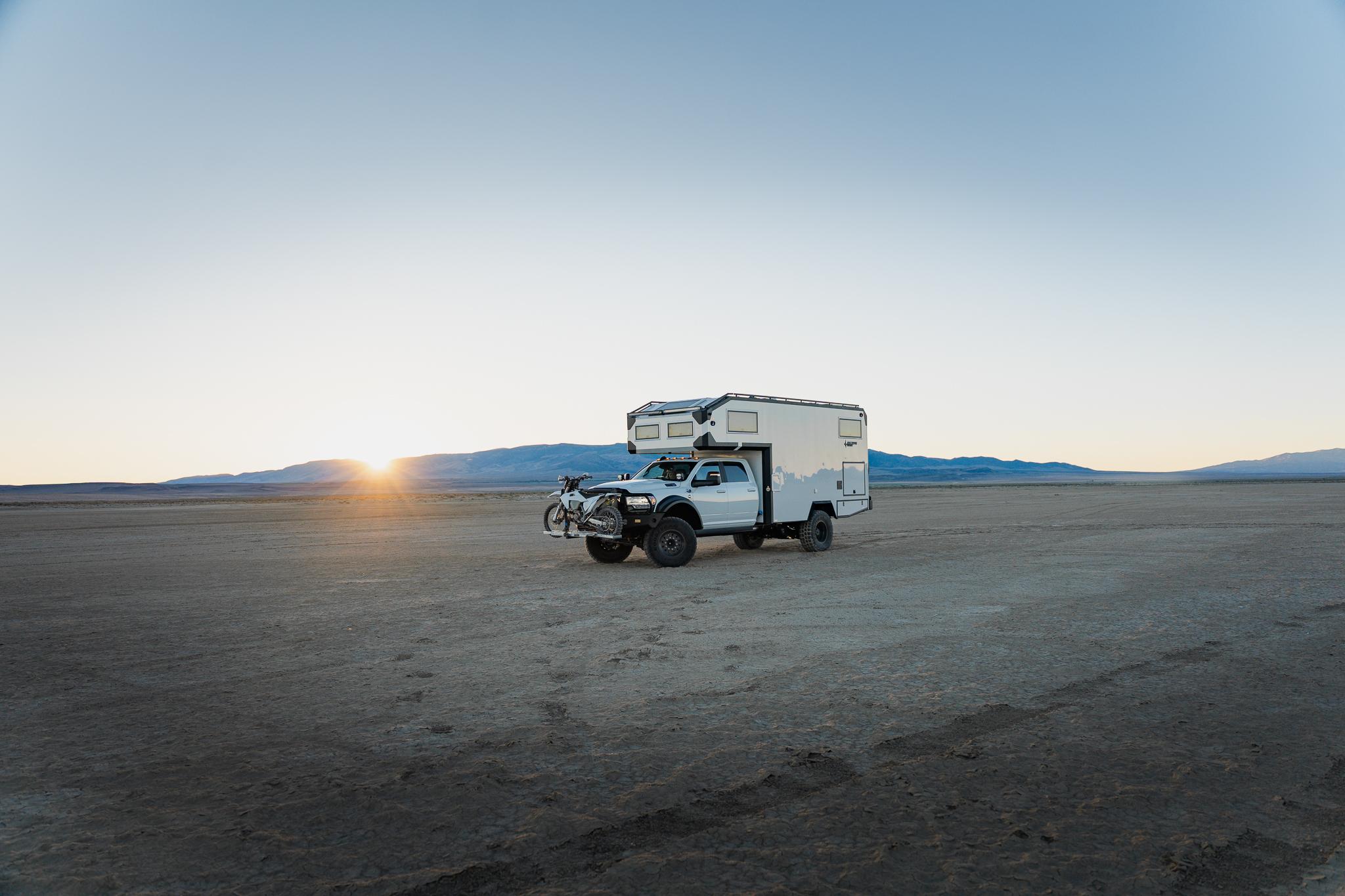

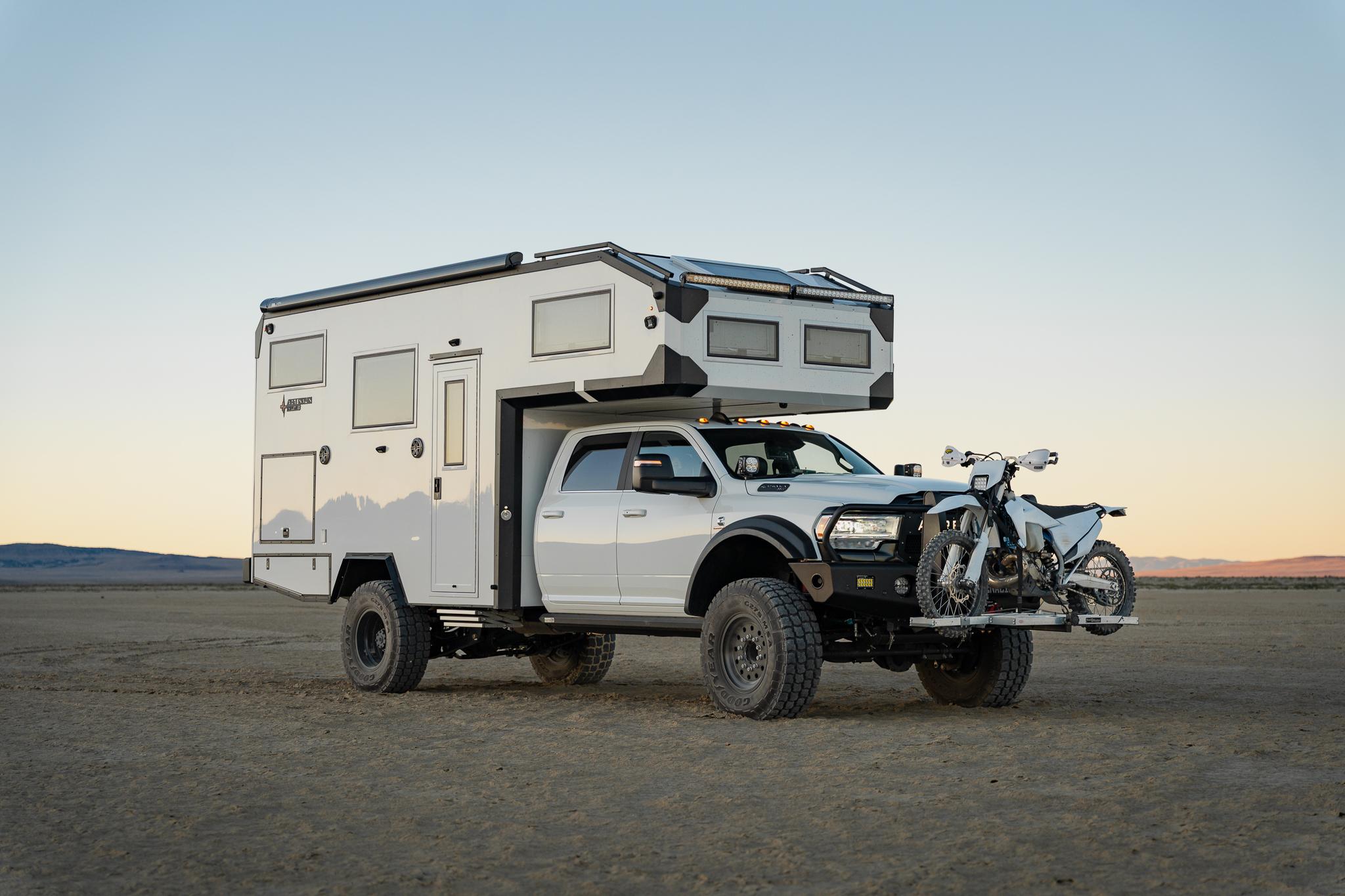

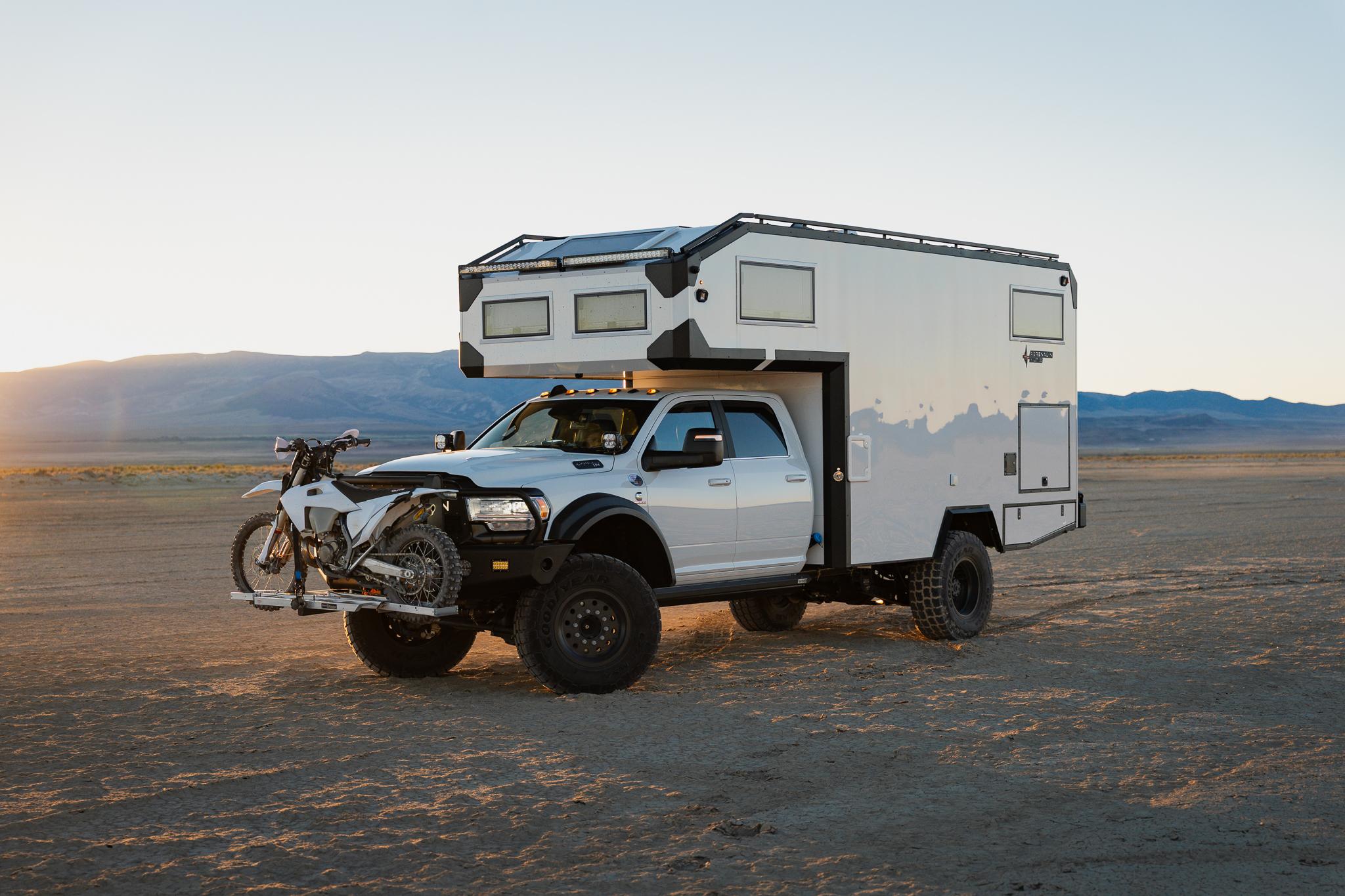

cleanBuilt by Adrenalin Industries, “Klause” is a 2024 Ram 5500 Limited transformed into a purpose-built AWOL expedition vehicle designed for extended travel well beyond established campgrounds. Combining a 6.7L Cummins turbodiesel, Liquid Springs active suspension, 41-inch tires, a 14-foot all-aluminum living module, 1,600 watts of solar and 100 gallons of fresh water, the build brings serious off-grid capability together with a remarkably complete living space.
Klause currently shows just 4,446 miles and serves as an Adrenalin AWOL demo truck. The underlying Ram 5500 rides on a 203-inch wheelbase and retains a 19,500-lb GVWR, while a custom frame extension supports the oversized living quarters. A 74-gallon fuel tank, dual 440-amp alternators, limited-slip rear axle, 20,000-lb front winch and Liquid Springs active smart suspension help prepare the truck for long-distance travel and remote destinations.

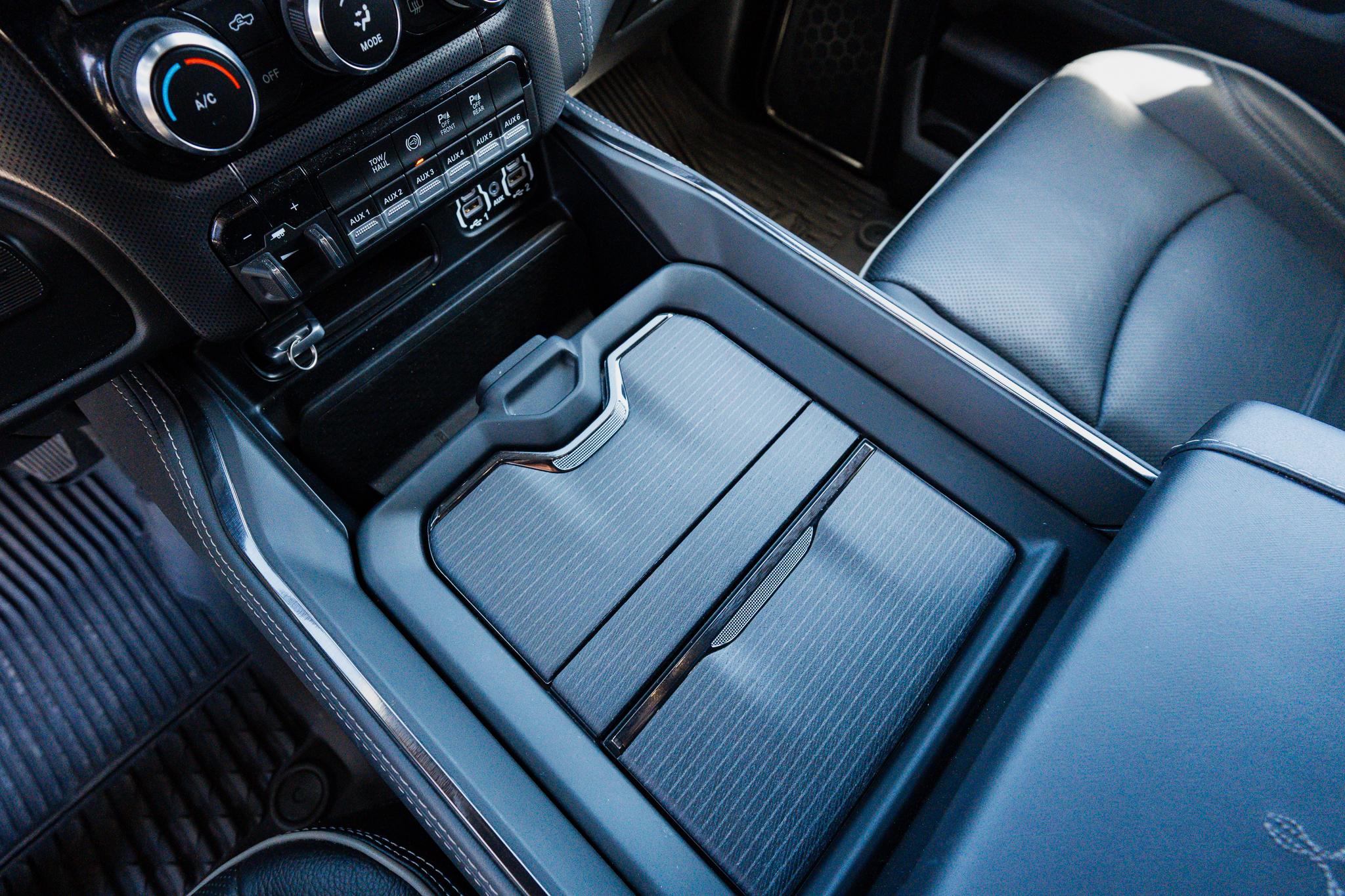

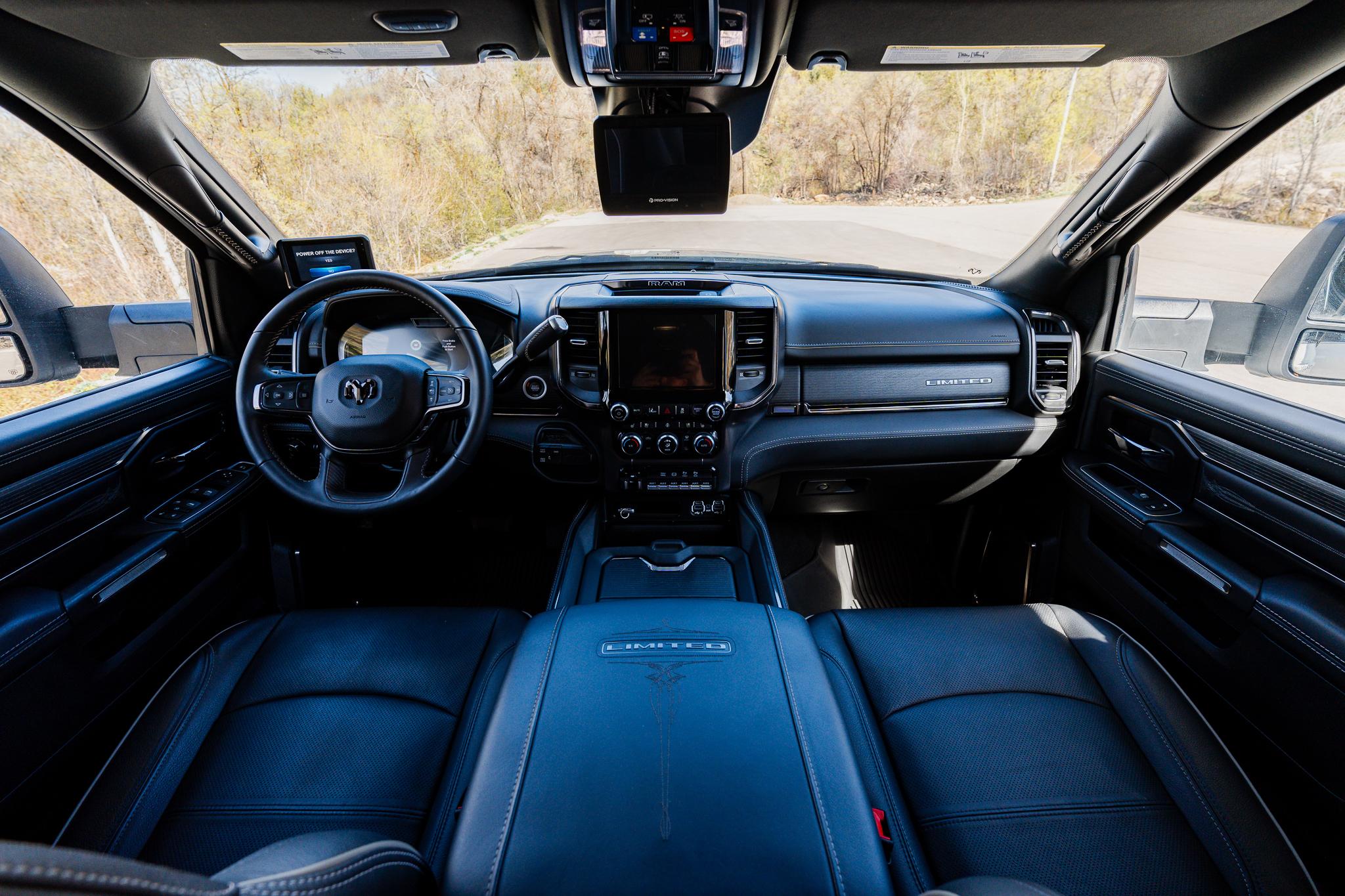

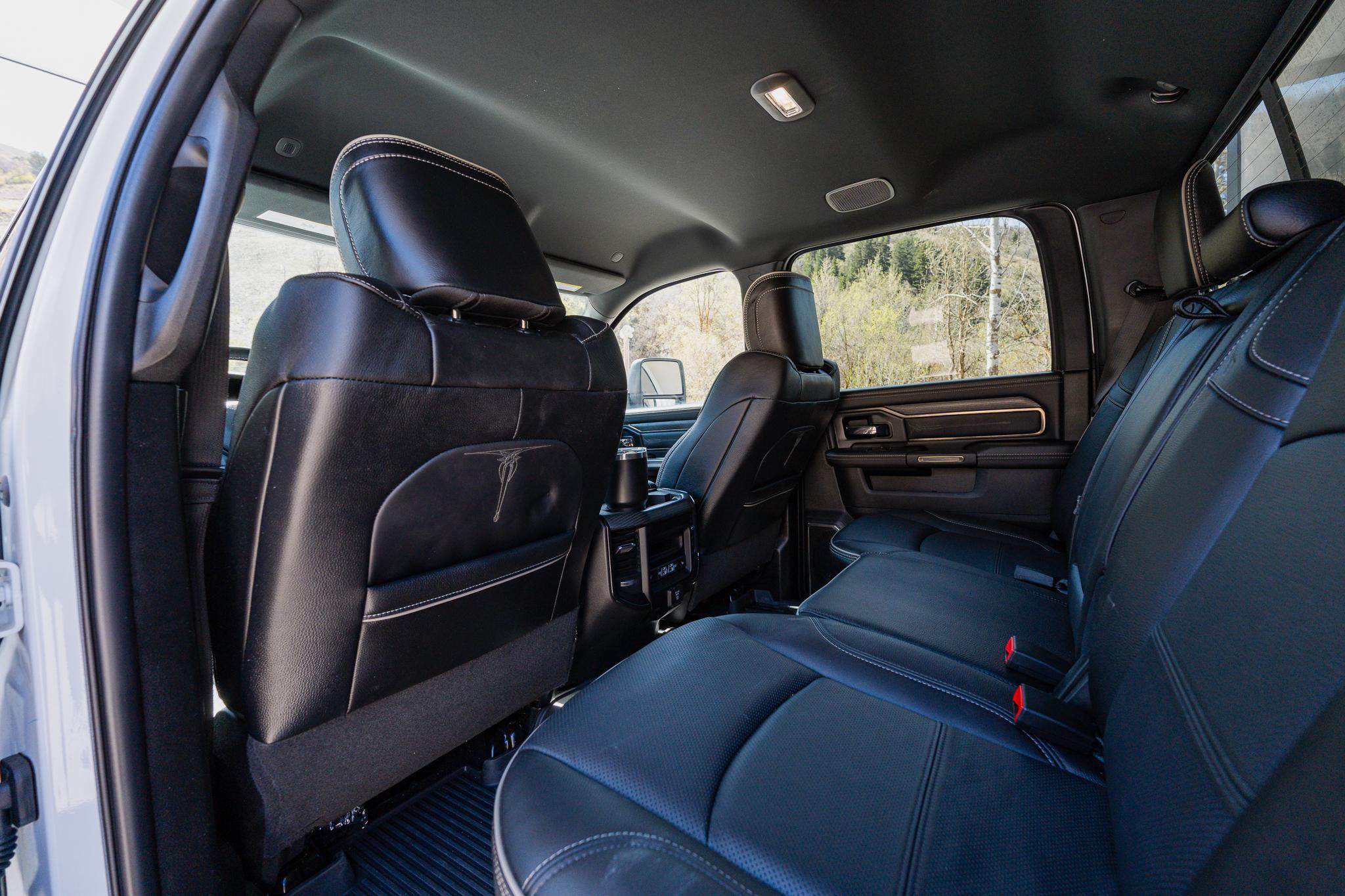

- Ram 5500 Foundation: At the center of the build is Ram’s 6.7L Cummins turbodiesel paired with the heavy-duty 5500 chassis. The Limited-spec cab brings a decidedly upscale starting point, with heated and ventilated front seats, heated rear seats, dual-zone automatic climate control, premium audio, a large infotainment display, Apple CarPlay and Android Auto. A 74-gallon fuel tank extends the truck’s usable range, while dual alternators provide 440 amps of combined output to support the substantial house electrical system.

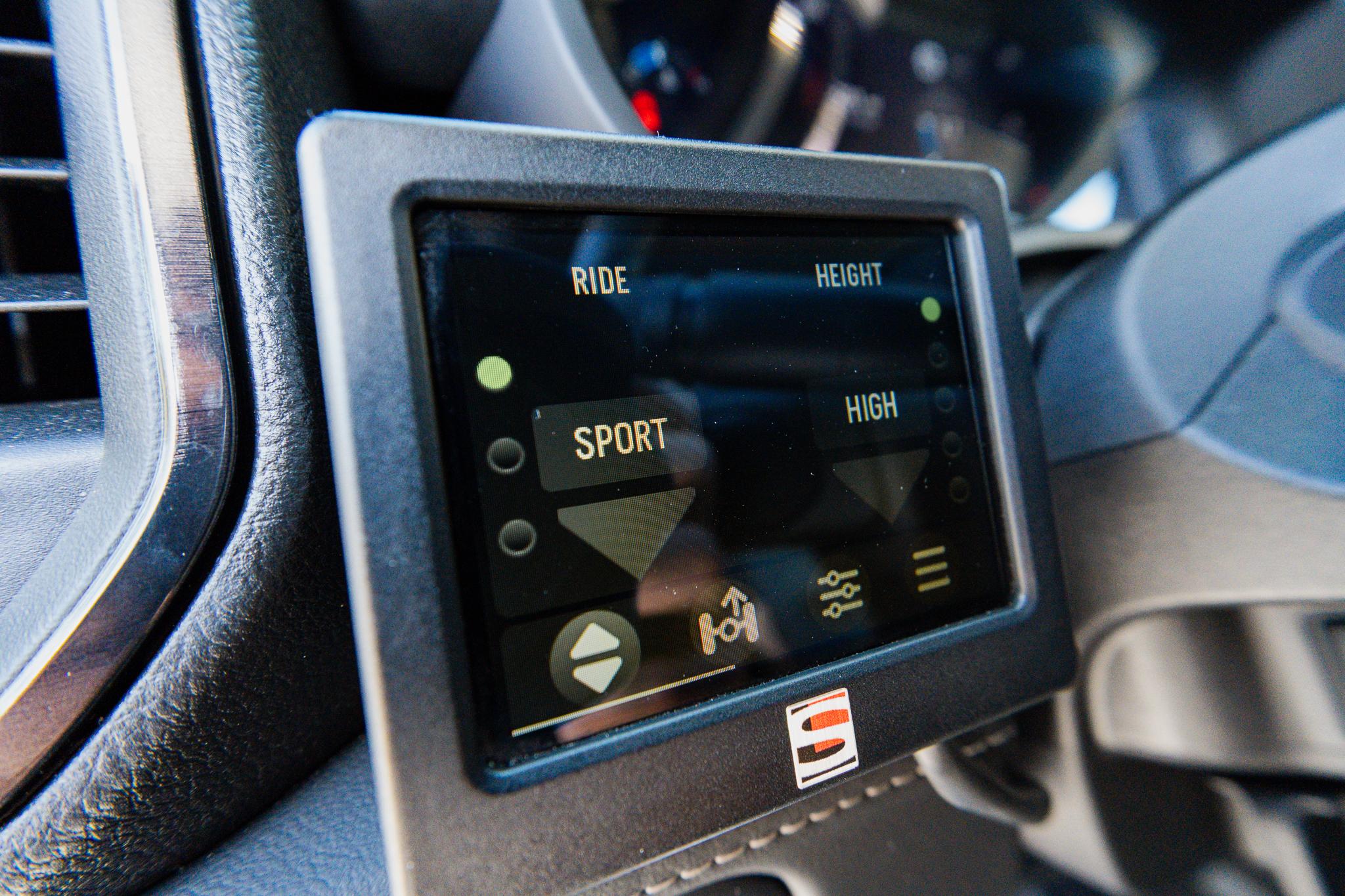

- Liquid Springs Suspension: Klause uses a Liquid Springs active smart suspension system rather than a conventional fixed-height setup. The system automatically compensates for vehicle load and provides five adjustable ride-height settings along with Sport, Normal and Comfort ride modes. True Earth campsite leveling is integrated into the system, allowing the truck to level itself at camp without relying on a separate traditional leveling arrangement.

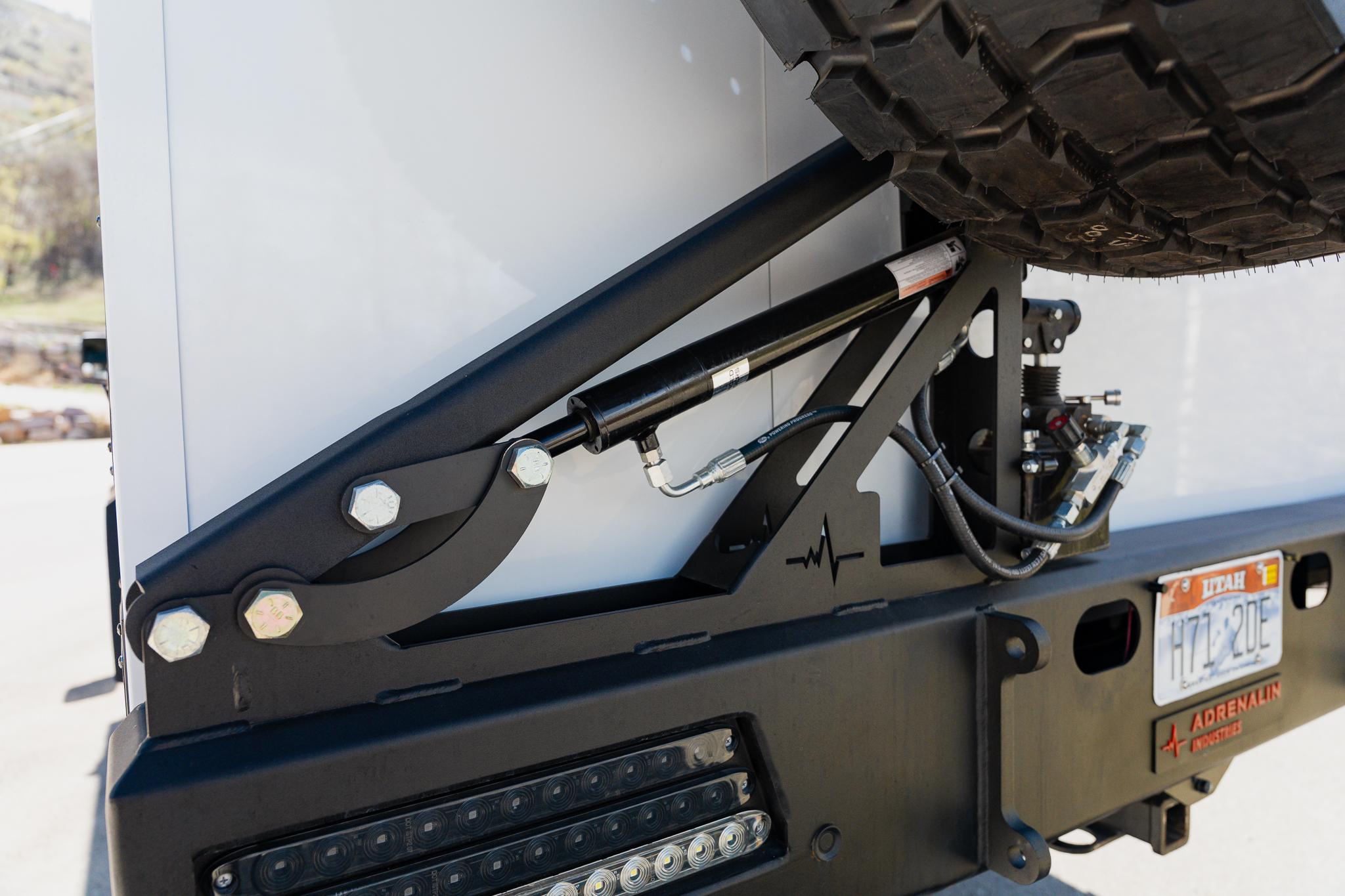

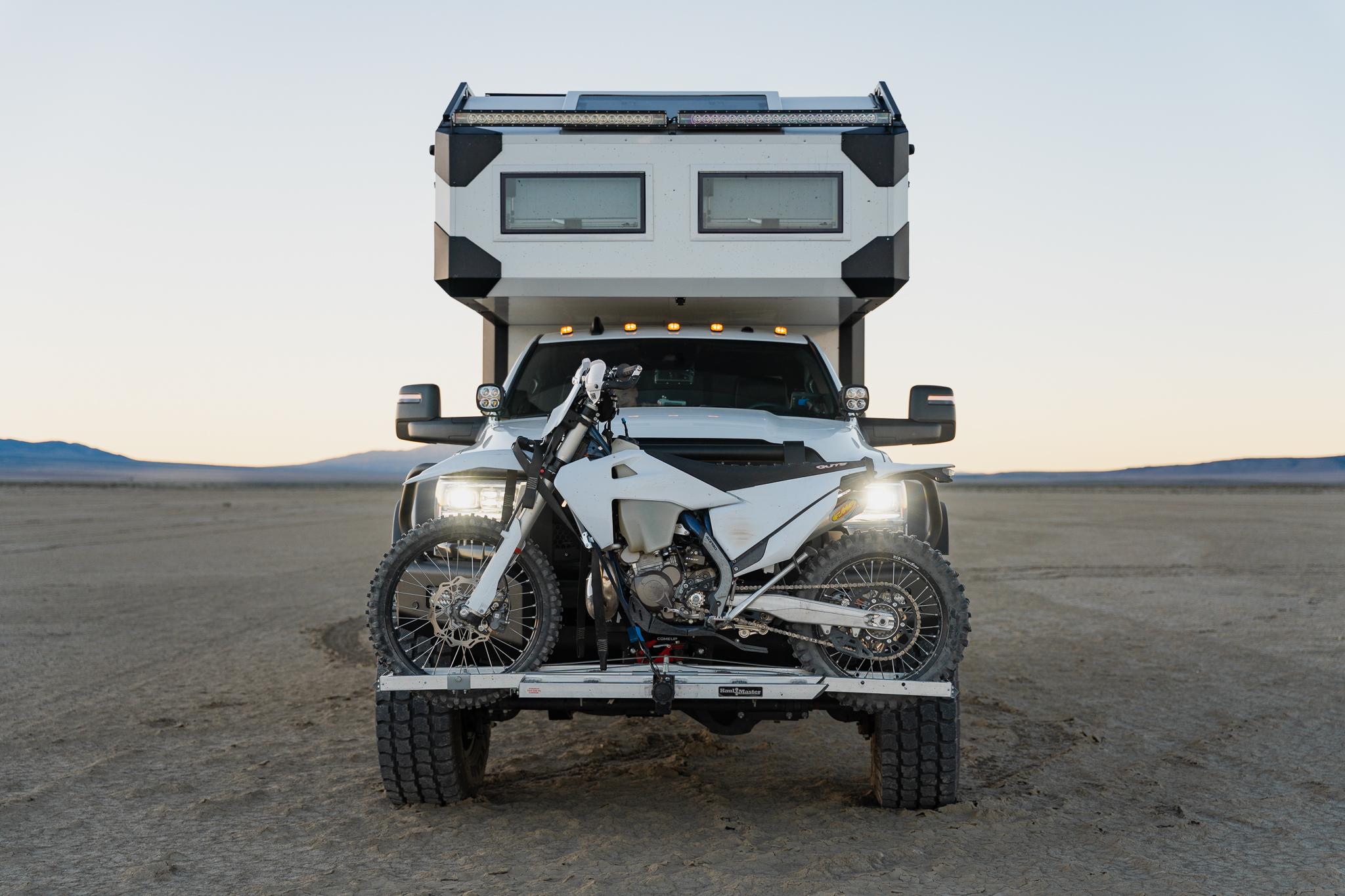

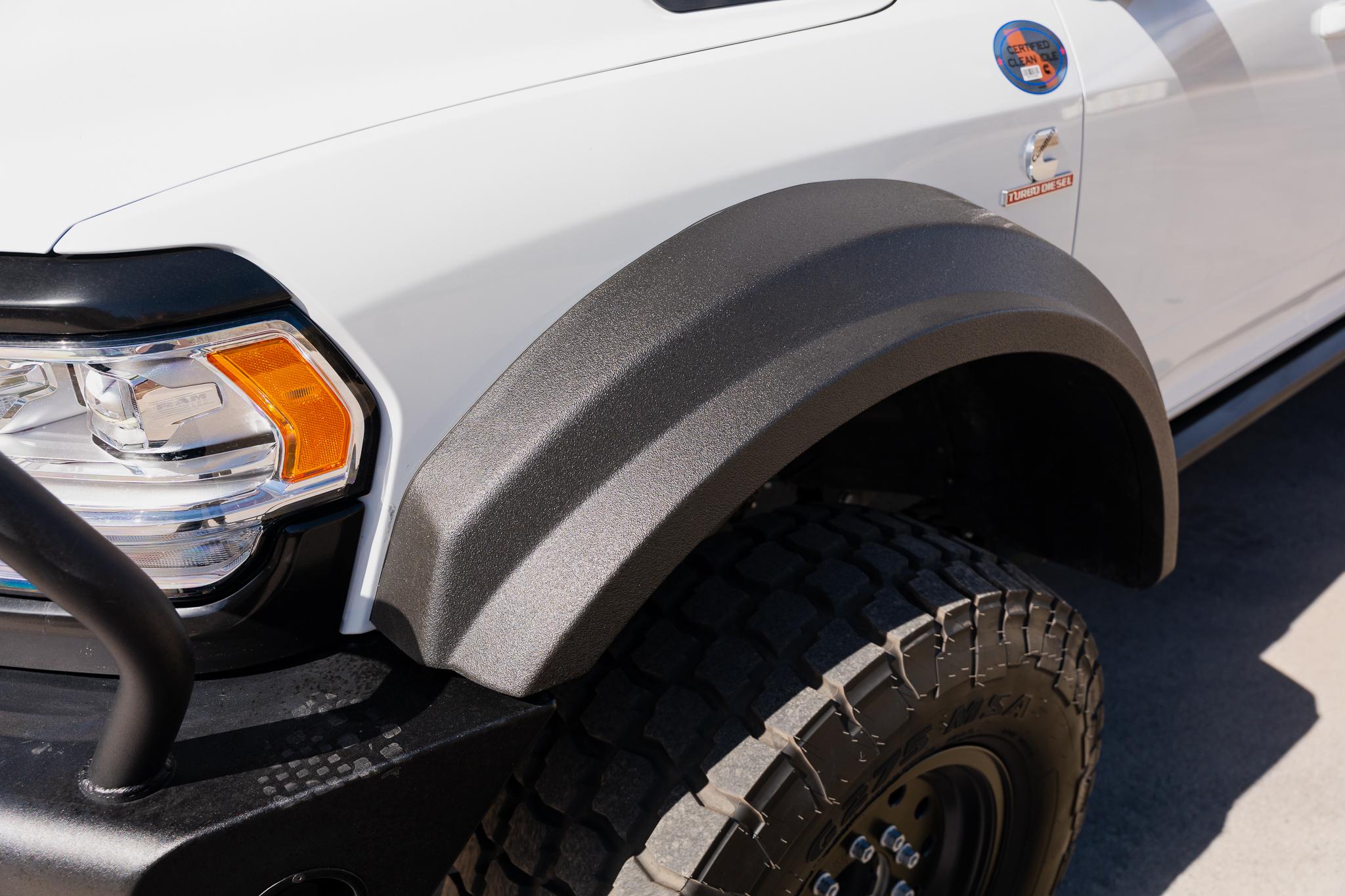

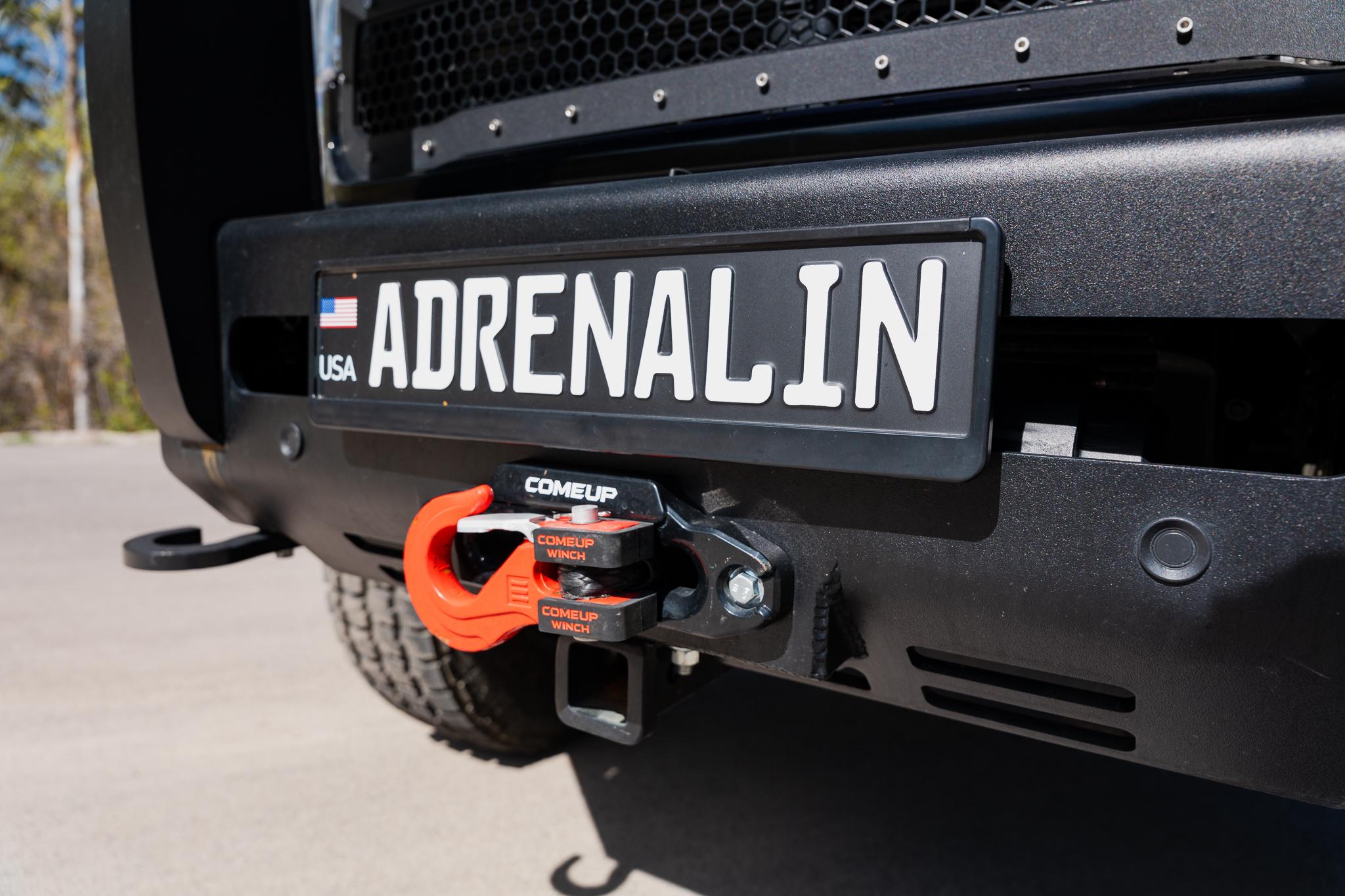

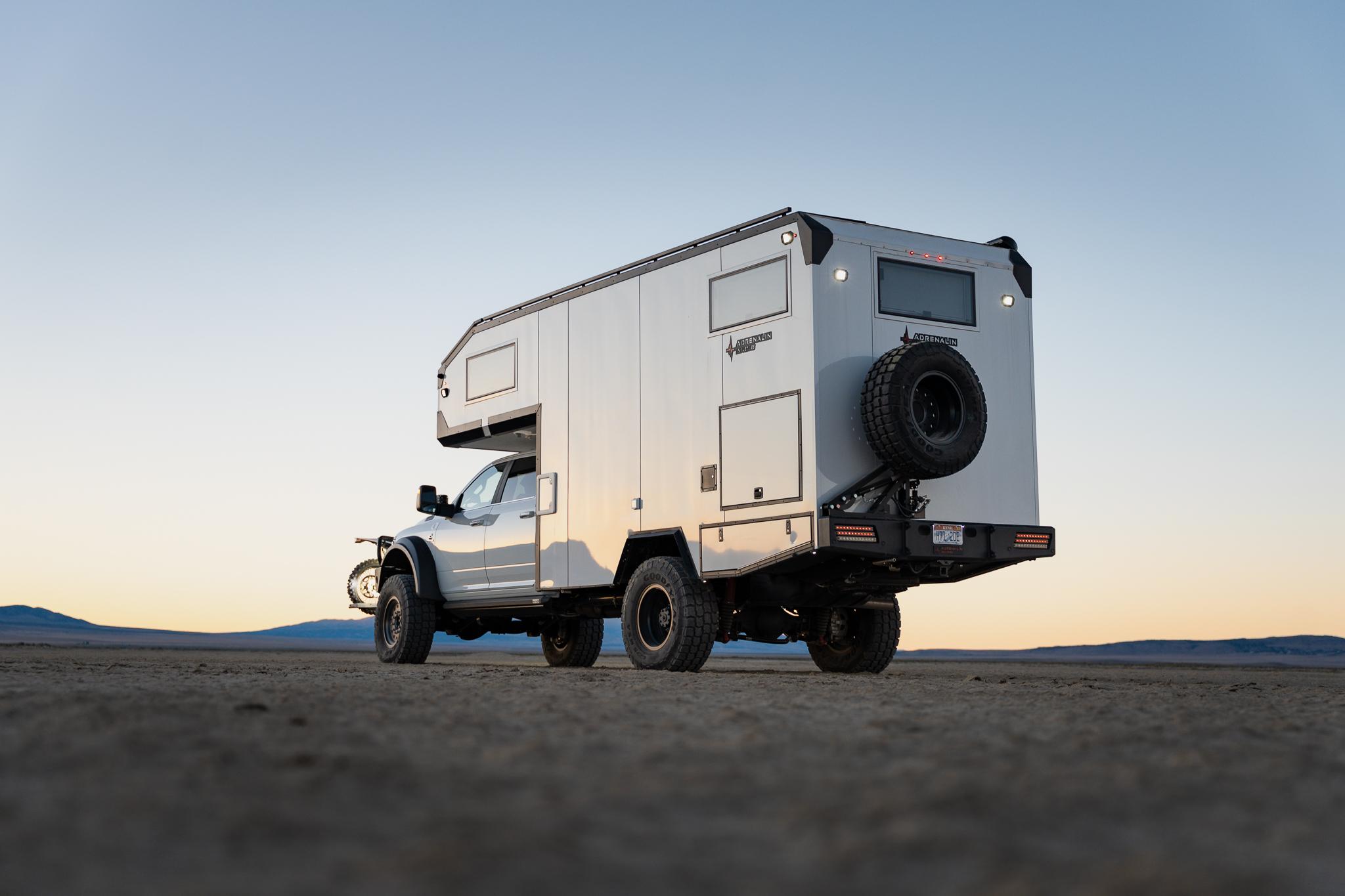

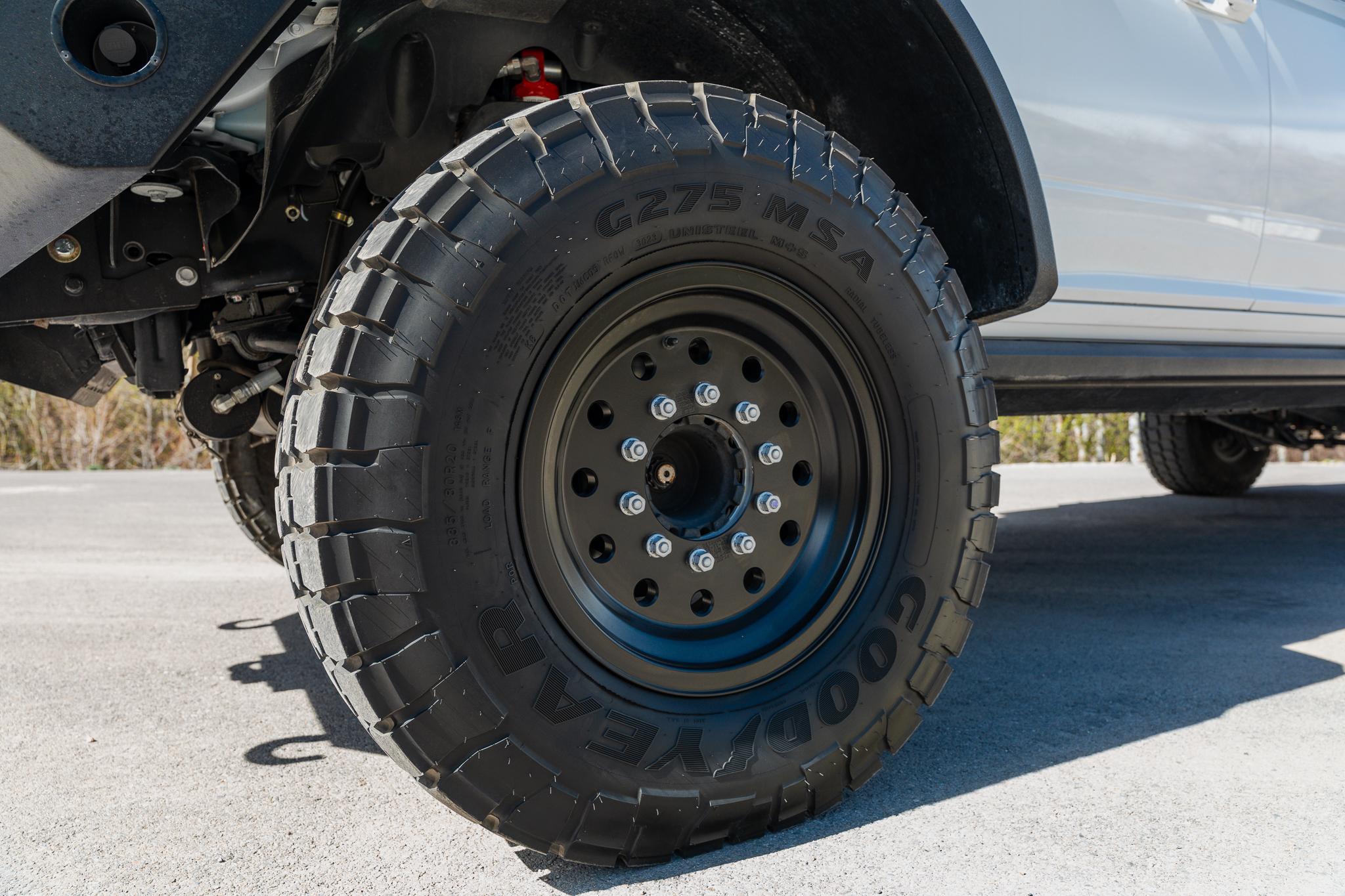

- Built For Remote Travel: The exterior hardware matches the scale of the truck. A Buckstop aluminum front bumper incorporates a ComeUp 20,000-lb winch with synthetic line, while the Adrenalin rear bumper includes another integrated winch mount and a hydraulic spare-tire lift. Stazworks 20-inch two-piece wheels are paired with 335/80R20 expedition tires measuring approximately 41 inches tall. A front receiver hitch, Rigid lighting, AMP XL automatic power steps and extensive aluminum exterior storage further expand the truck’s utility.
- Serious Off-Grid Capacity: Klause carries a 24V electrical system built around dual Mastervolt 24-6000 batteries providing 460Ah of total capacity. The system includes a Mastervolt 3,500W inverter/charger, dual MPPT solar controllers, multiple Mastervolt DC-to-DC chargers and 1,600 watts of roof-mounted solar. CZone digital switching and monitoring ties the major systems together through an NMEA 2000 network, providing centralized control of lighting, tank monitoring and other onboard functions. Fresh-water capacity is an equally substantial 100 gallons, accompanied by a 45-gallon grey-water tank. Tank heaters, a variable-speed water pump, exterior shower connection and Aqua-Hot diesel-powered heat and hot water support four-season travel.

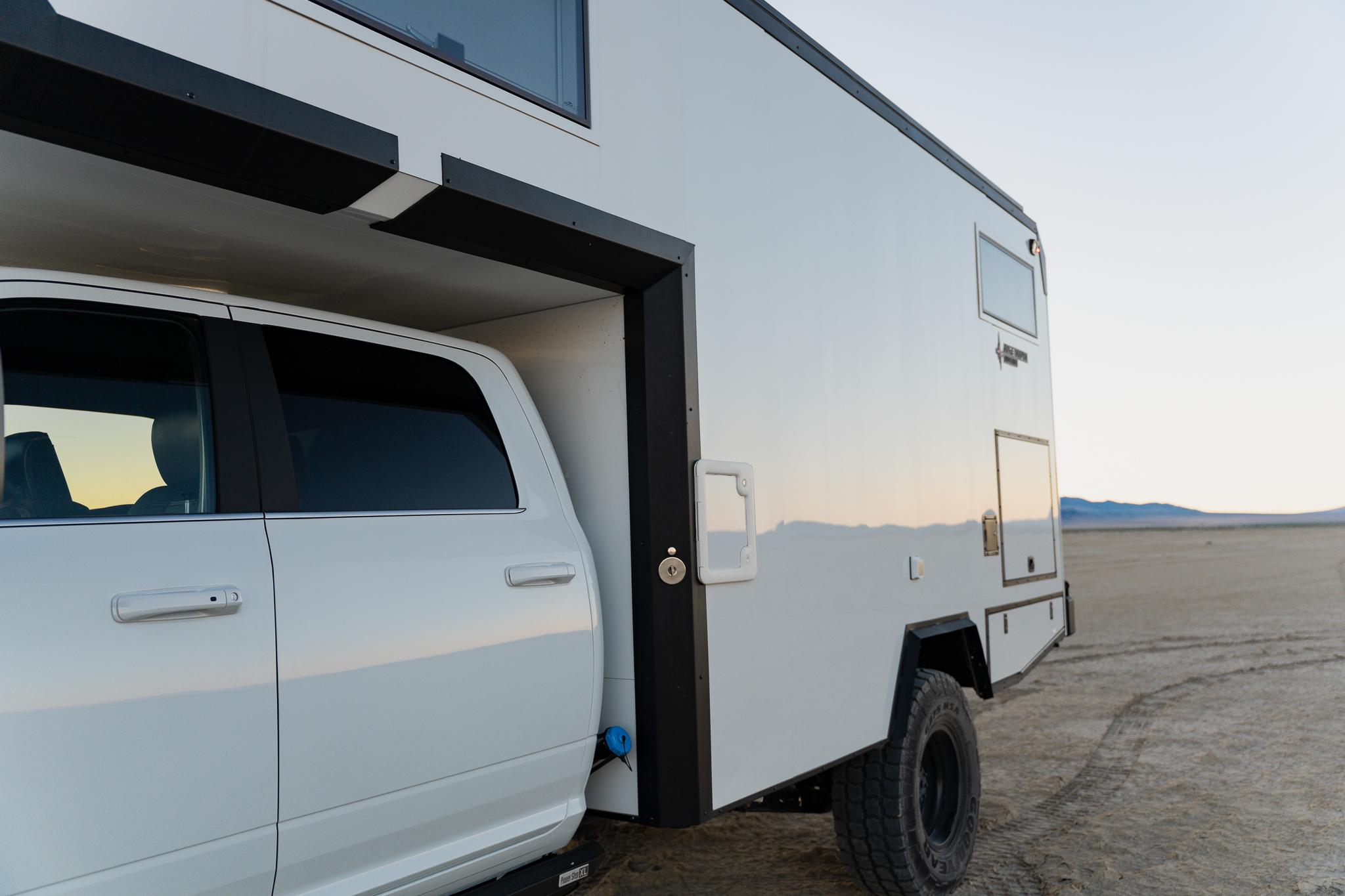

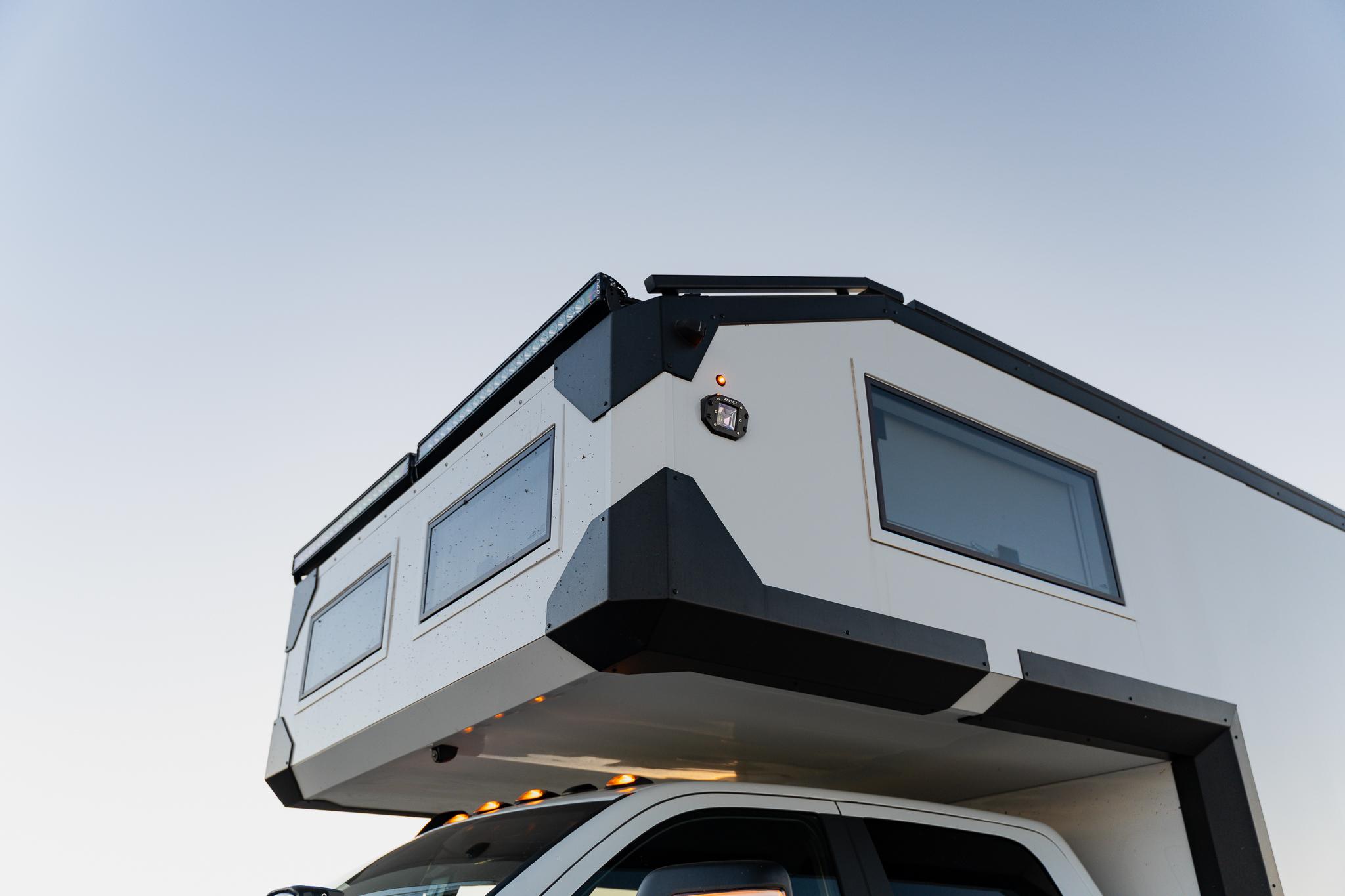

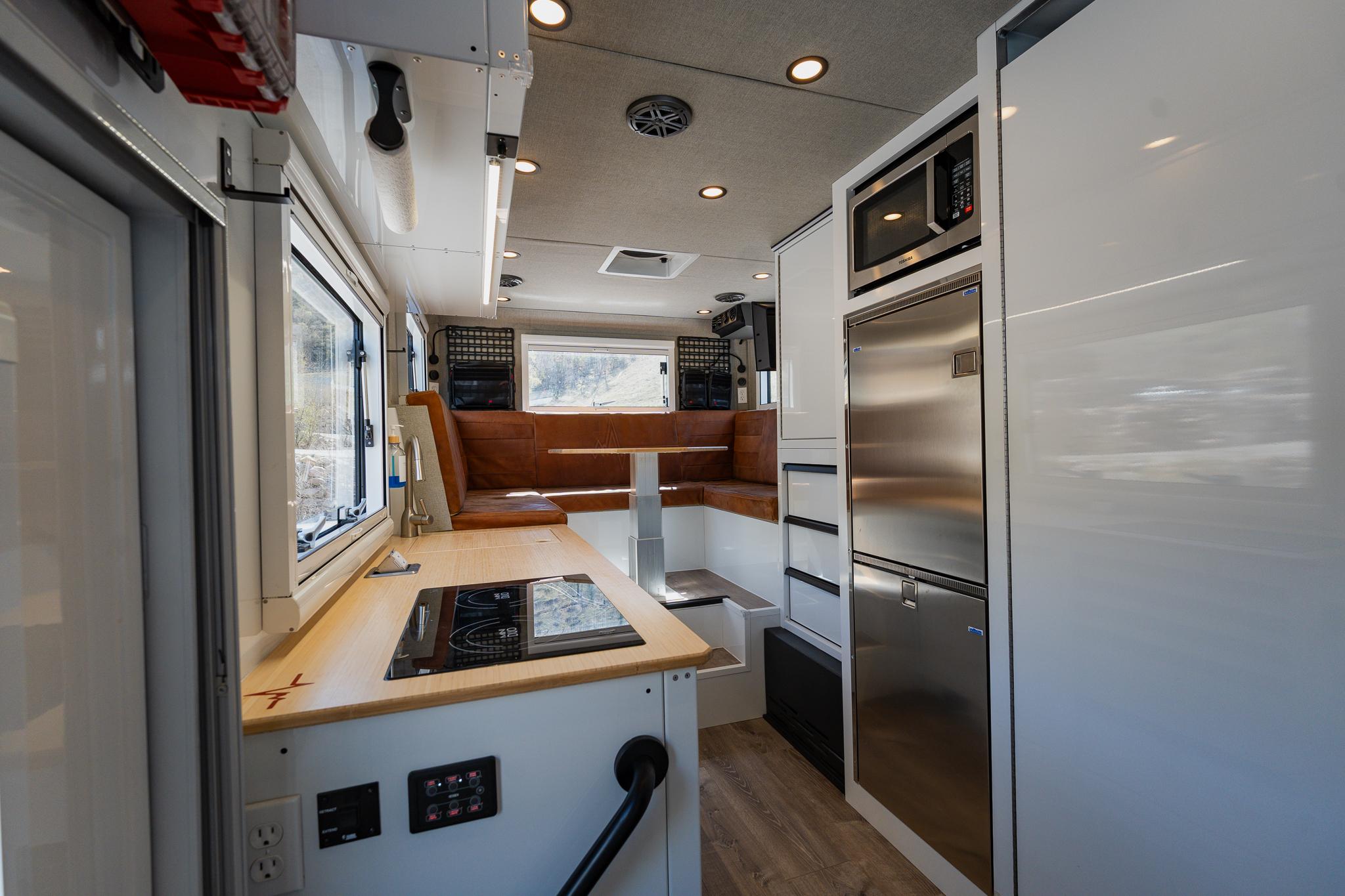

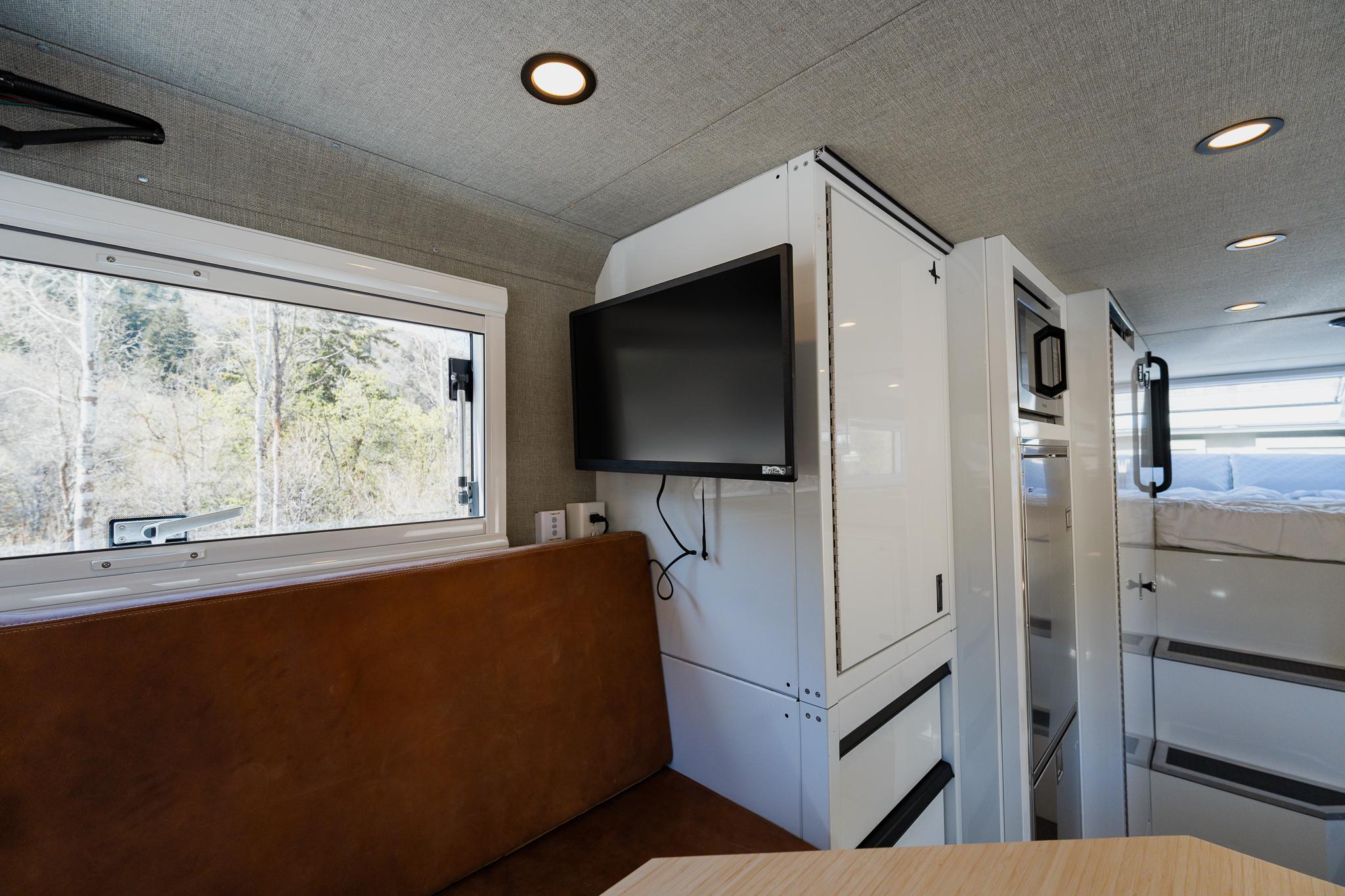

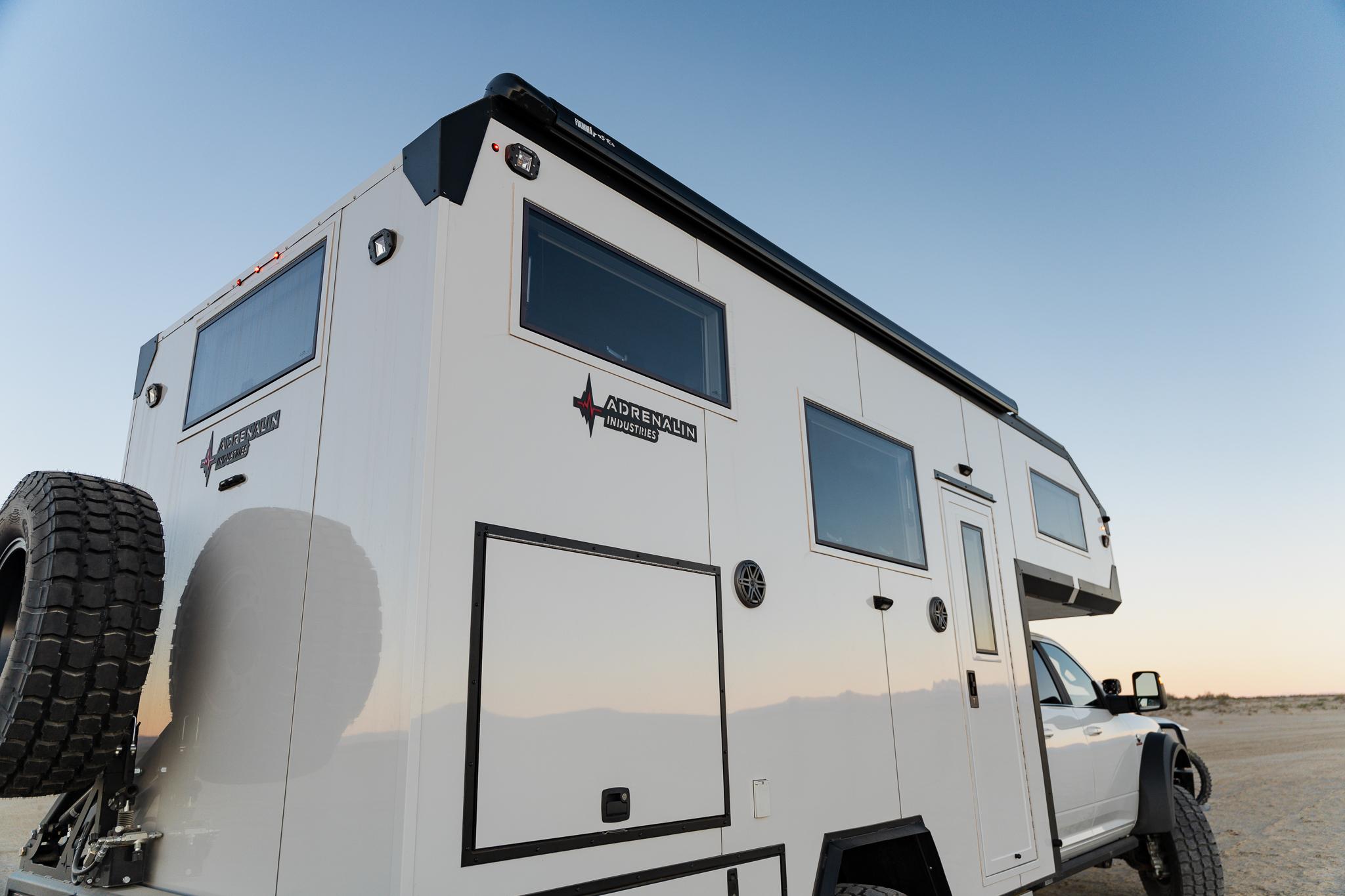

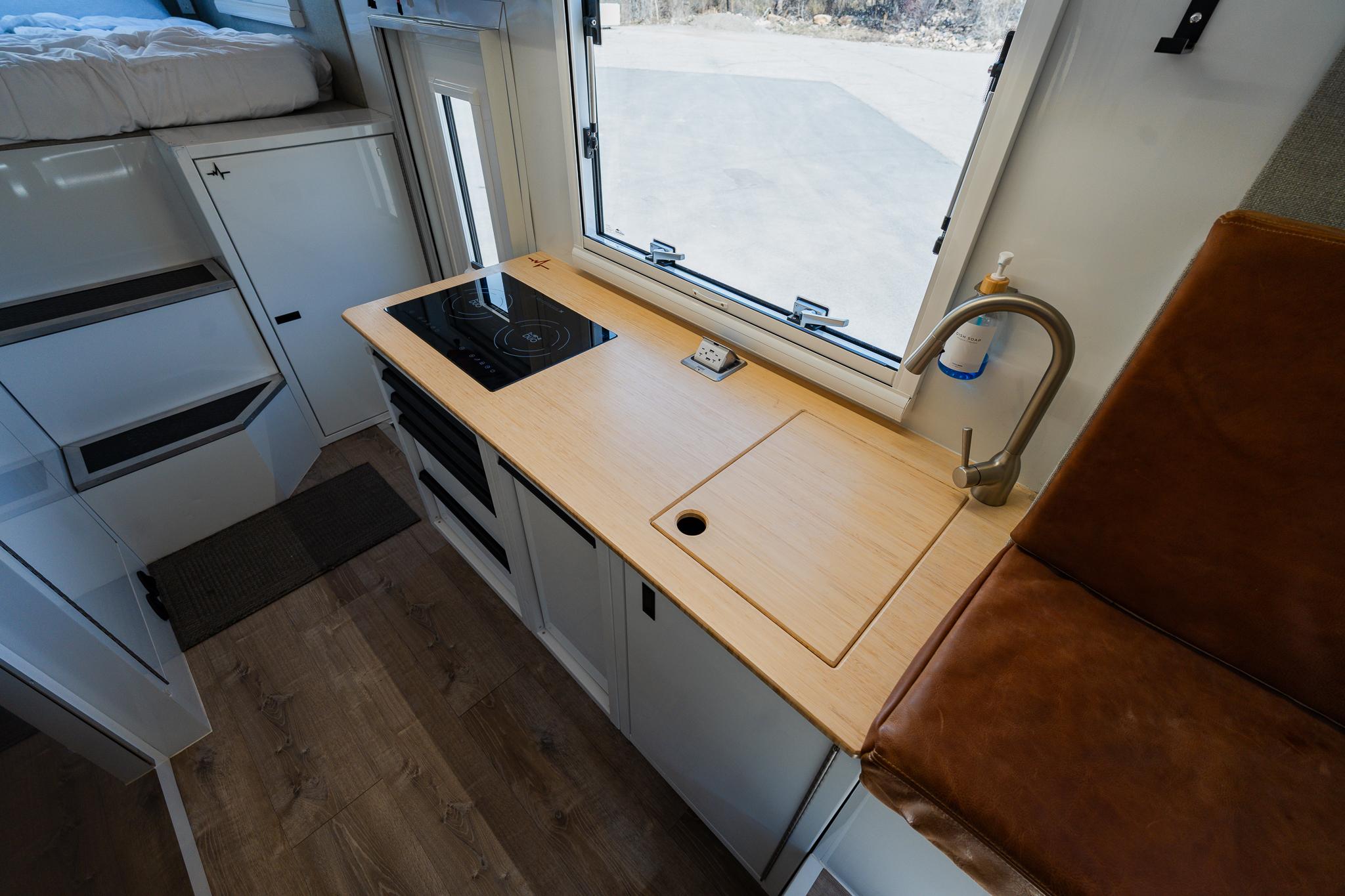

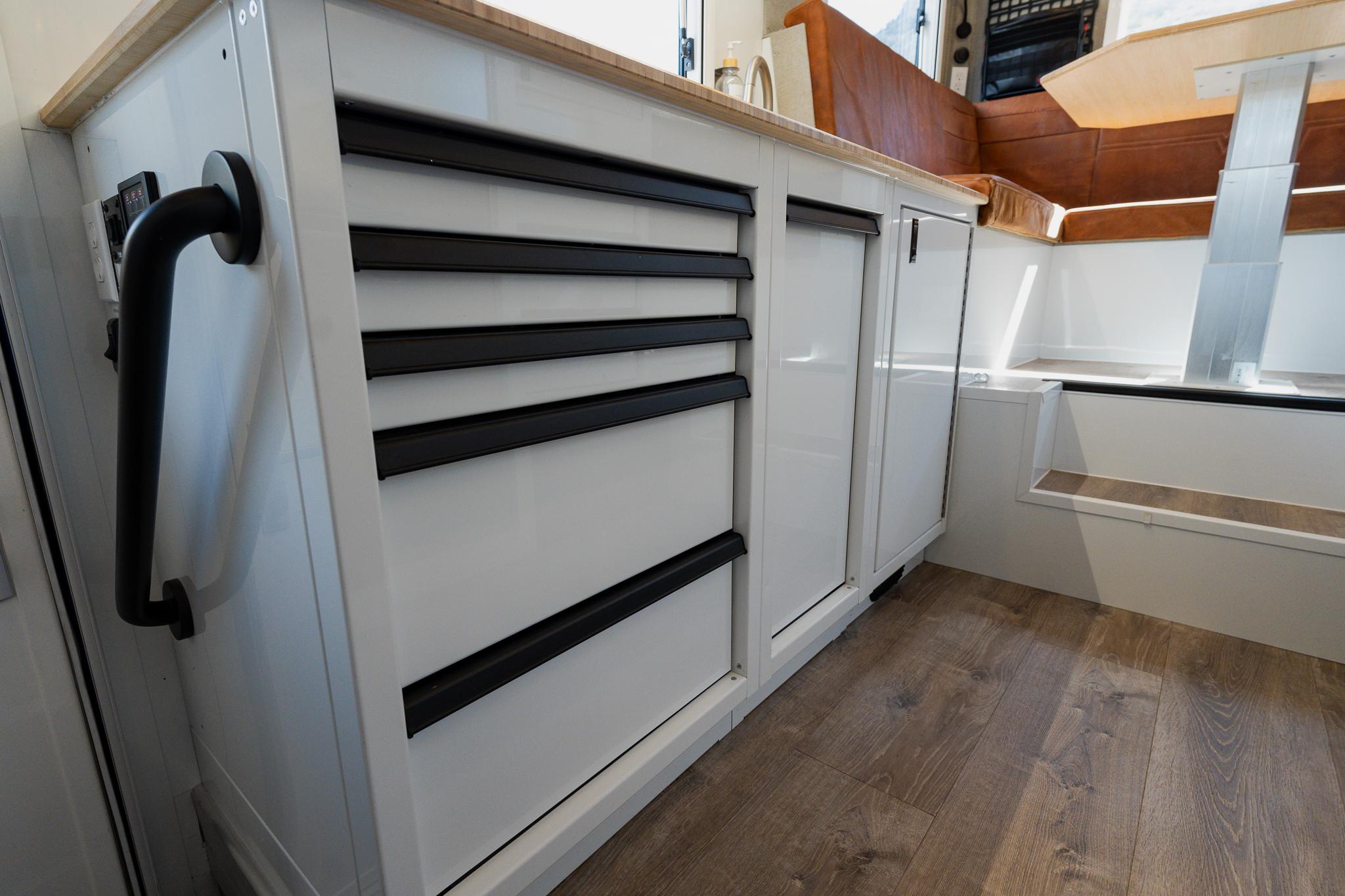

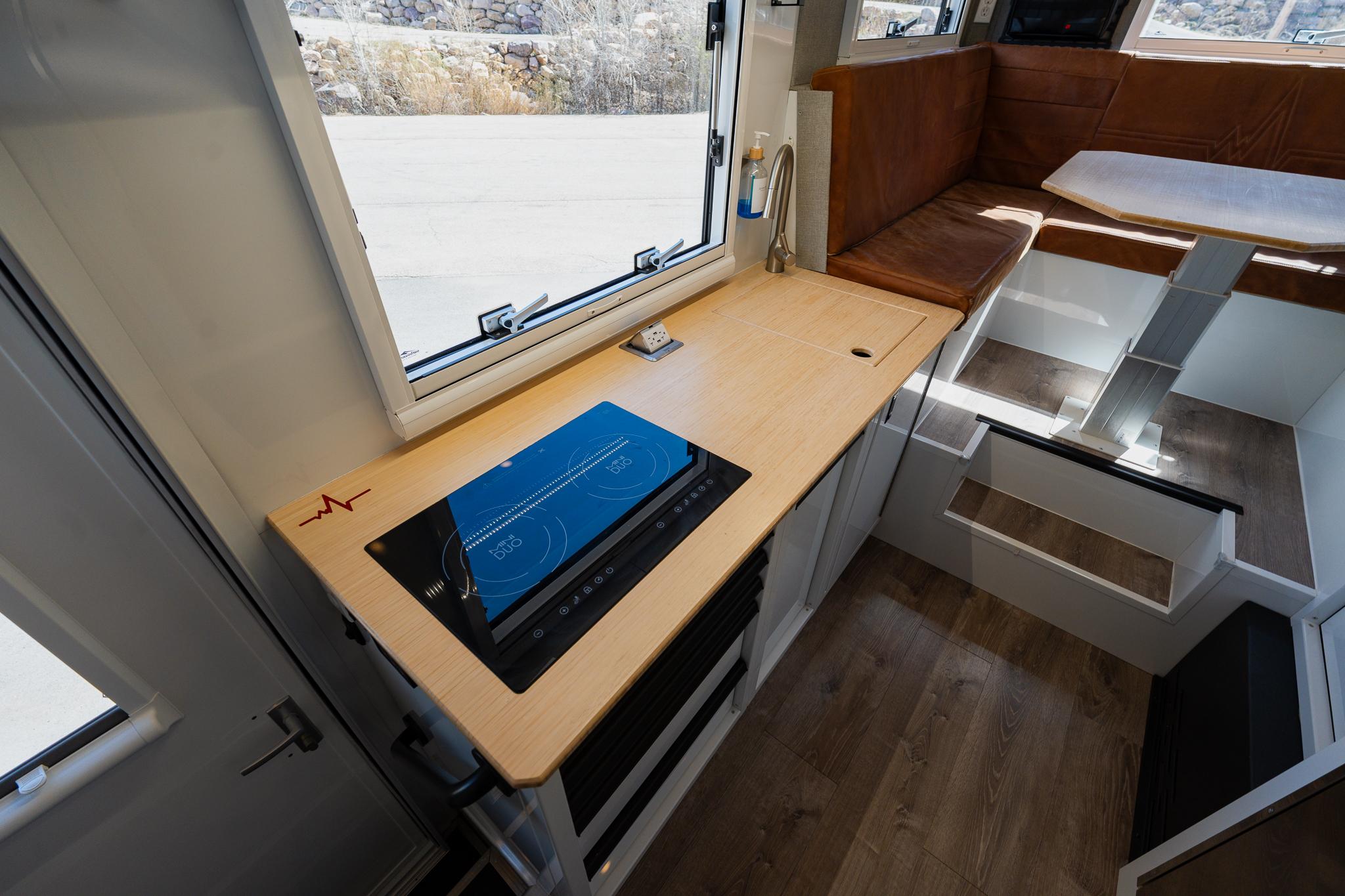

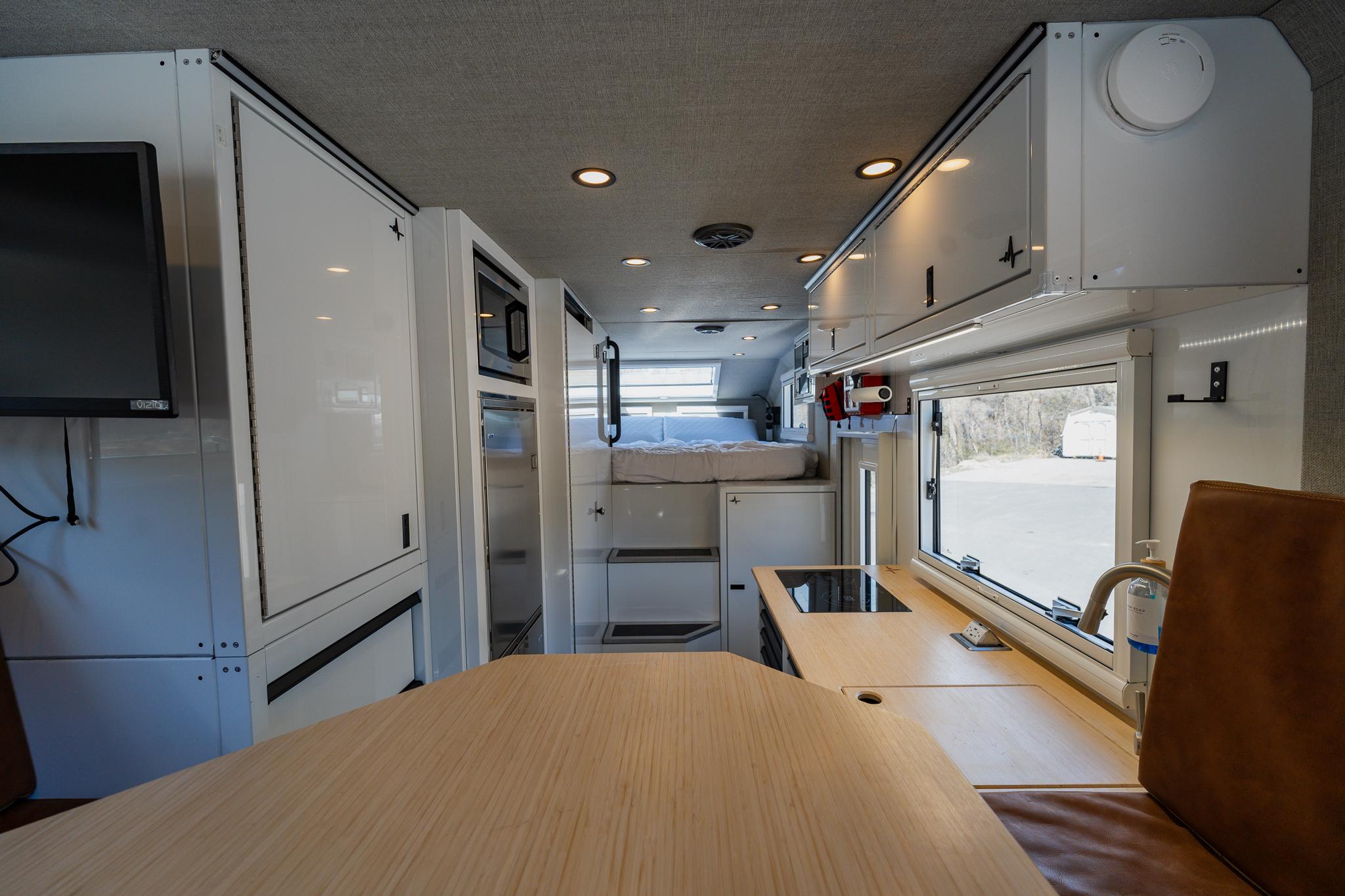

- A True Living Space: Rather than adapting a conventional slide-in camper, Adrenalin constructed a 14-foot all-aluminum living module with a seven-foot cabover and seven-foot interior height. Extruded 6061 aluminum structural tubing, aluminum/poly-core exterior panels and spray-foam insulation create a lightweight but substantial shell, with R-14 insulation in the walls and R-20 insulation in the floor and ceiling. Inside, aluminum cabinetry and drawers, upholstered walls and ceiling panels, commercial-grade vinyl flooring and Outbound dual-pane windows give the camper a finished residential feel while retaining materials suited to expedition travel. Sleeping accommodations include a king-size cabover bed with a custom triple-density foam mattress, while the powered dinette converts into an additional queen-size bed. The galley includes an induction cooktop, refrigerator/freezer, microwave/convection oven, stainless steel sink and bamboo or quartz countertop.
Klause was engineered as an integrated expedition vehicle rather than a collection of accessories added to a heavy-duty pickup. The chassis, active suspension, electrical system, water storage, heating, cooling and living module are all designed around the same mission: remaining comfortable and self-contained while traveling far from conventional infrastructure.
The combination of a 74-gallon diesel supply, 100 gallons of fresh water, 1,600 watts of solar, 460Ah 24V battery bank and diesel-fired heat and hot water gives the truck substantial independence once pavement and hookups disappear. At the same time, its Ram 5500 Limited cab, active suspension and complete interior make the miles between destinations considerably more civilized.
Drivetrain & Chassis
- 2024 Ram 5500 Limited
- 6.7L Cummins turbodiesel
- 4x4
- 203 in. wheelbase
- 19,500-lb chassis GVWR
- Custom frame extension
- High-capacity trailer towing package
- 74-gallon fuel tank
- Dual alternators, 440 amps combined
- 4.88 limited-slip rear axle
- 4,446 miles
- VIN: 3C7WRNFL1RG182897
Suspension & Wheels
- Liquid Springs active smart suspension
- Automatic chassis load leveling
- True Earth campsite leveling
- Five adjustable ride-height settings
- Sport, Normal and Comfort ride settings
- Stazworks 20 in. two-piece wheels
- 335/80R20 expedition tires
- Approximately 41 in. tire diameter
- Speedometer calibration
Exterior & Recovery

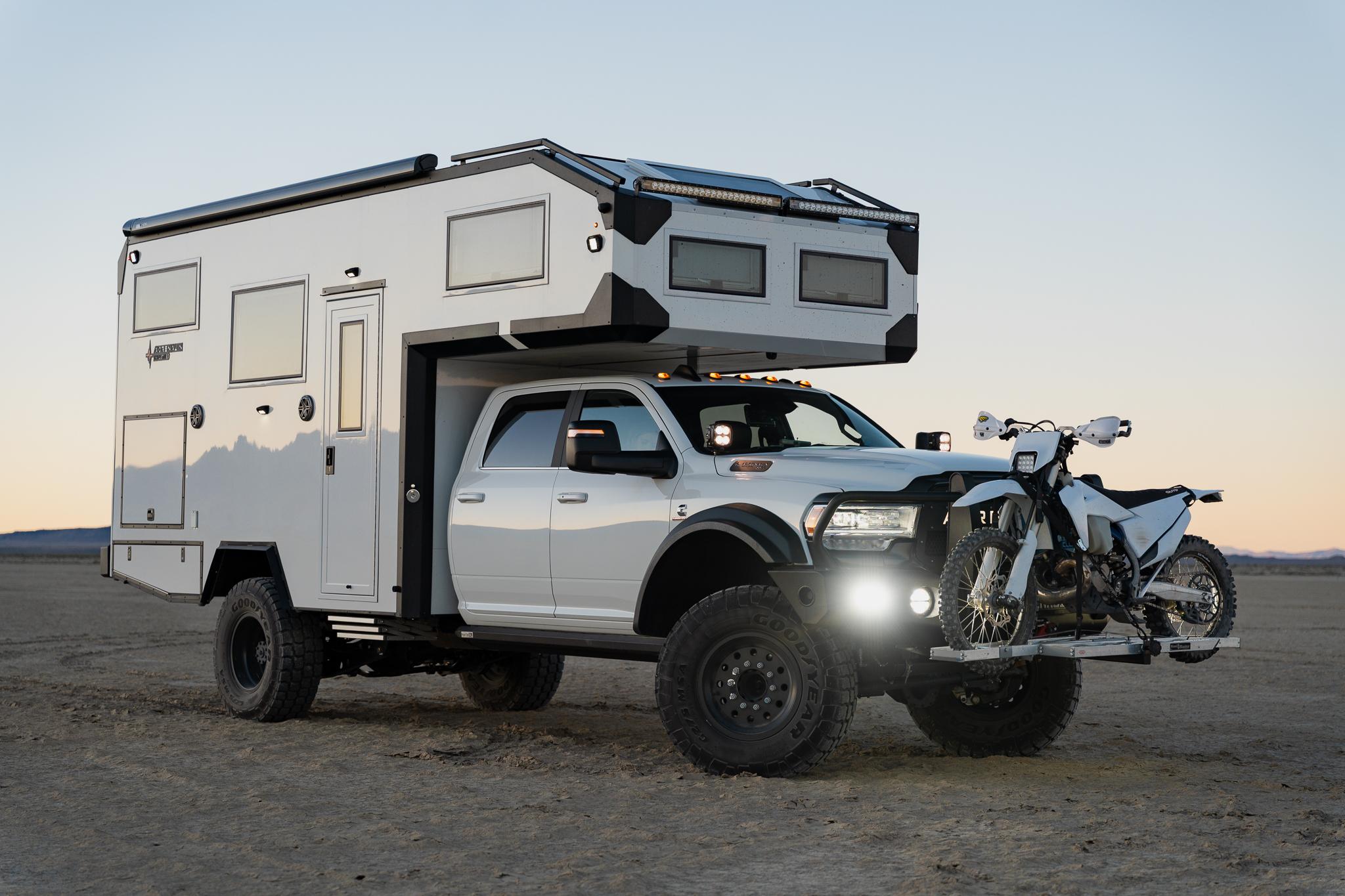

- Buckstop aluminum front bumper
- ComeUp 20,000-lb front winch
- Synthetic winch line
- Front receiver hitch

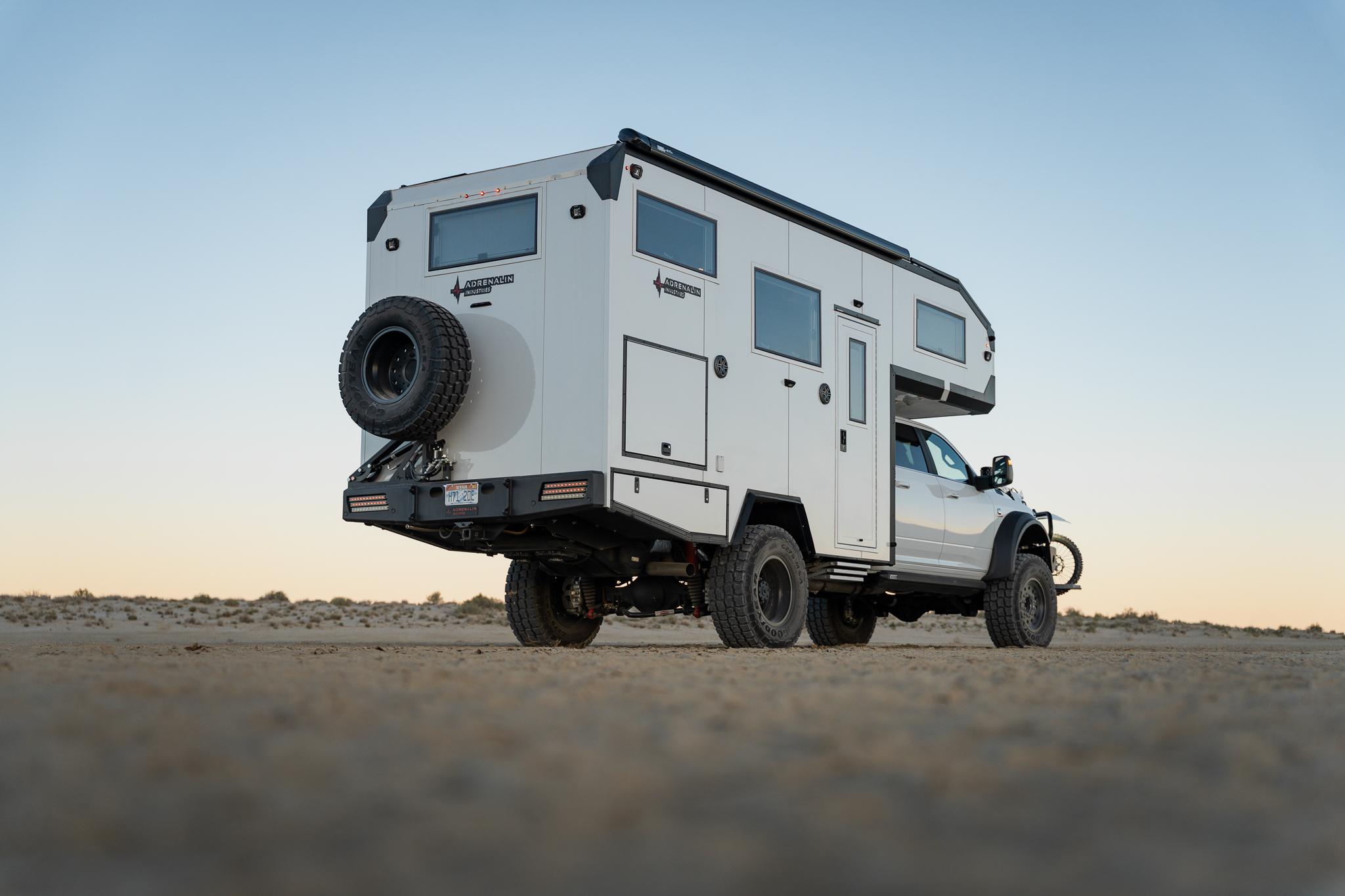

- Adrenalin rear bumper
- Integrated rear winch mount
- Hydraulic spare-tire lift

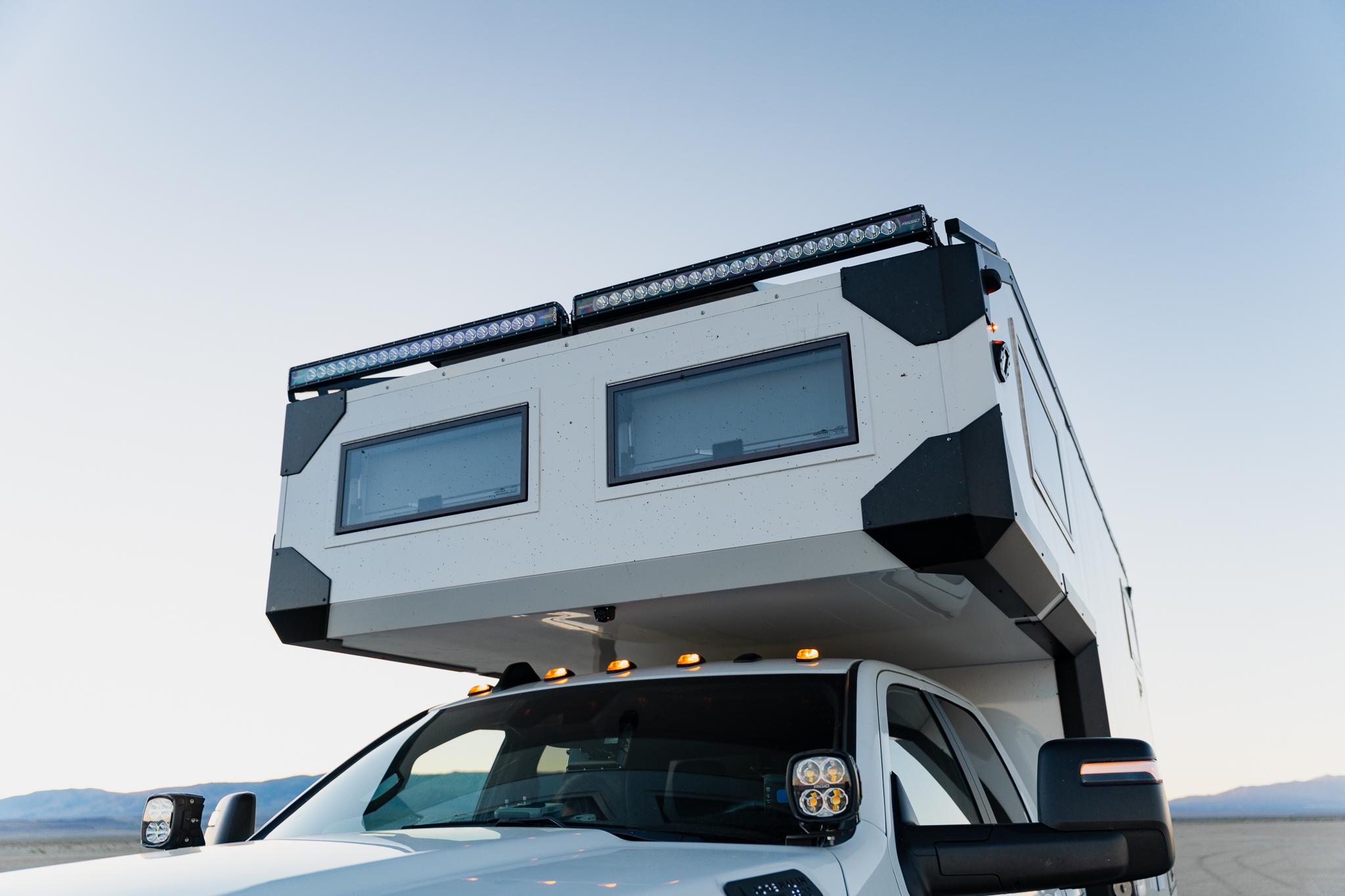

- Rigid front lighting
- Rigid side and rear scene lighting

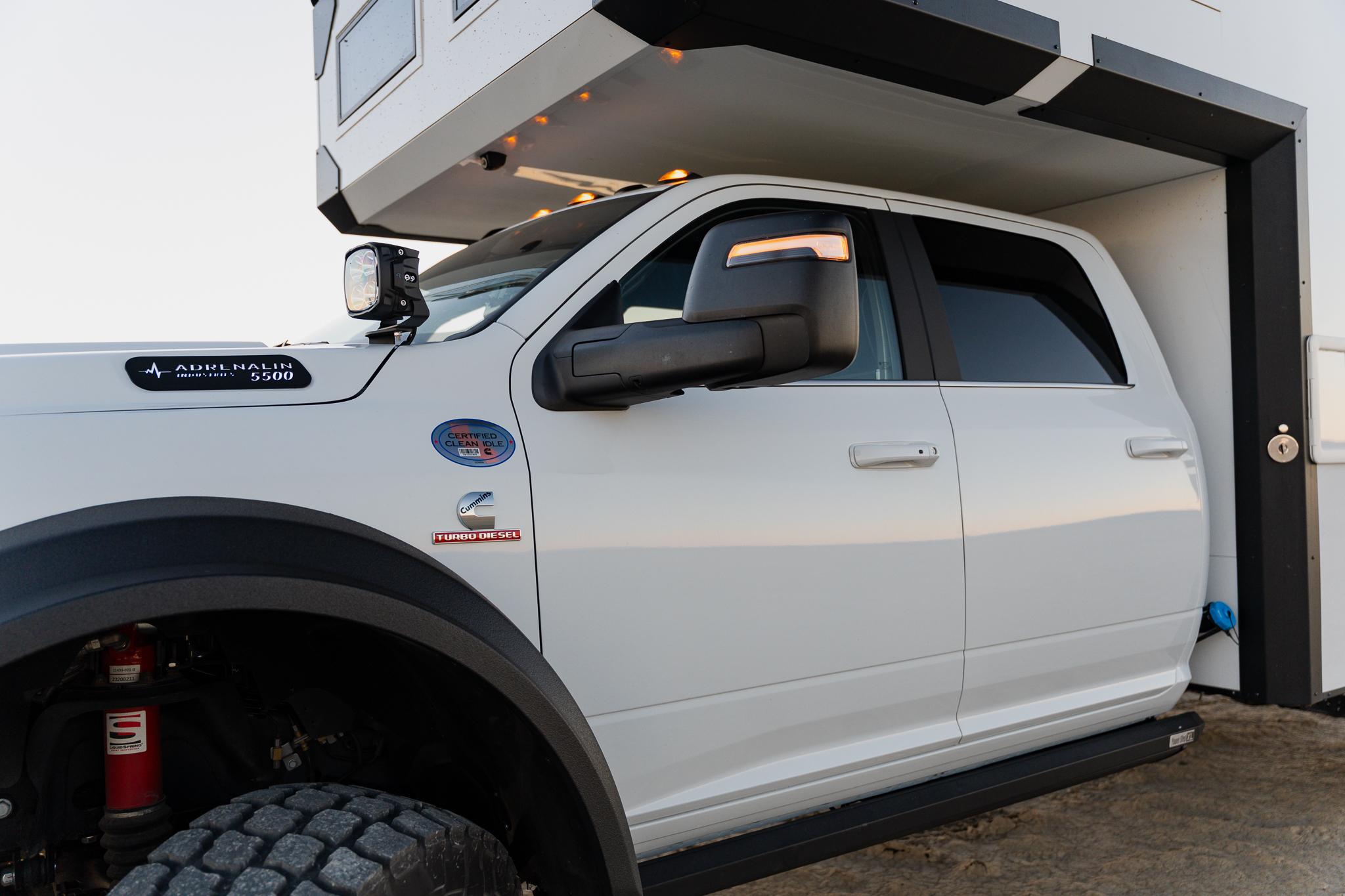

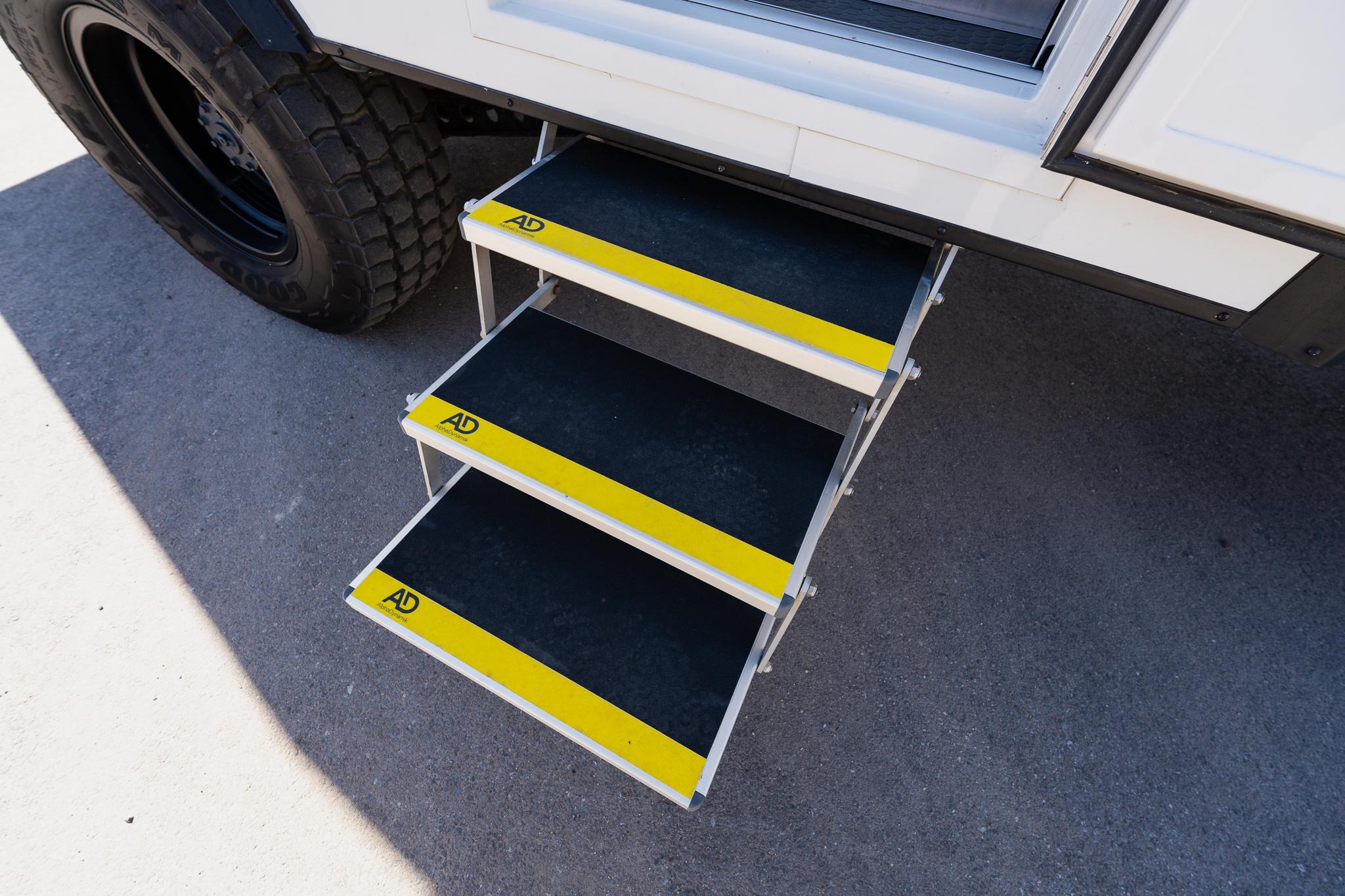

- AMP XL automatic power steps

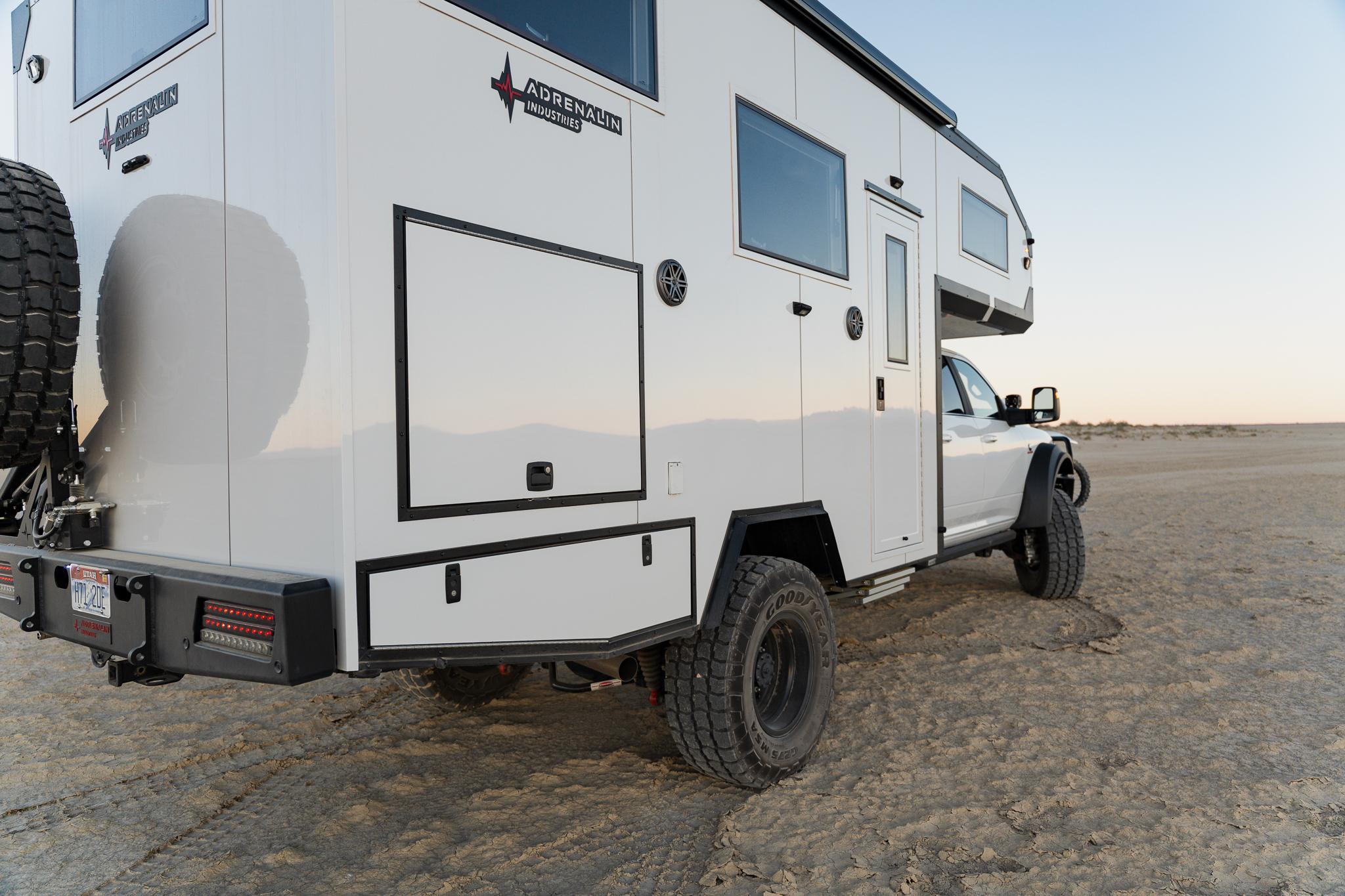

- Aluminum under-mount storage boxes
- Fiamma electric awning with automatic wind retraction
- Rear garage with automatic LED lighting
- Reinforced walk-on roof
- Approx. 29 ft. overall length
- 94 in. overall width
- 12 ft. overall height
- Approx. 16,500–18,500-lb loaded weight
Living Module
- 14 ft. camper box
- 7 ft. cabover
- 91 in. wide
- 7 ft. interior height
- All-aluminum construction
- Extruded 6061 aluminum structural tubing
- Aluminum/poly-core exterior panels
- 3M VHB bonded construction
- Spray-foam insulation
- R-14 wall insulation
- R-20 floor and ceiling insulation
- 3/4 in. PakTite engineered subfloor
- Commercial-grade vinyl flooring
- Upholstered walls and ceiling
- Aluminum cabinetry and drawers
- Automatic cabinet lighting
- Outbound dual-pane windows
- Integrated bug and blackout shades
- Outbound roof hatch

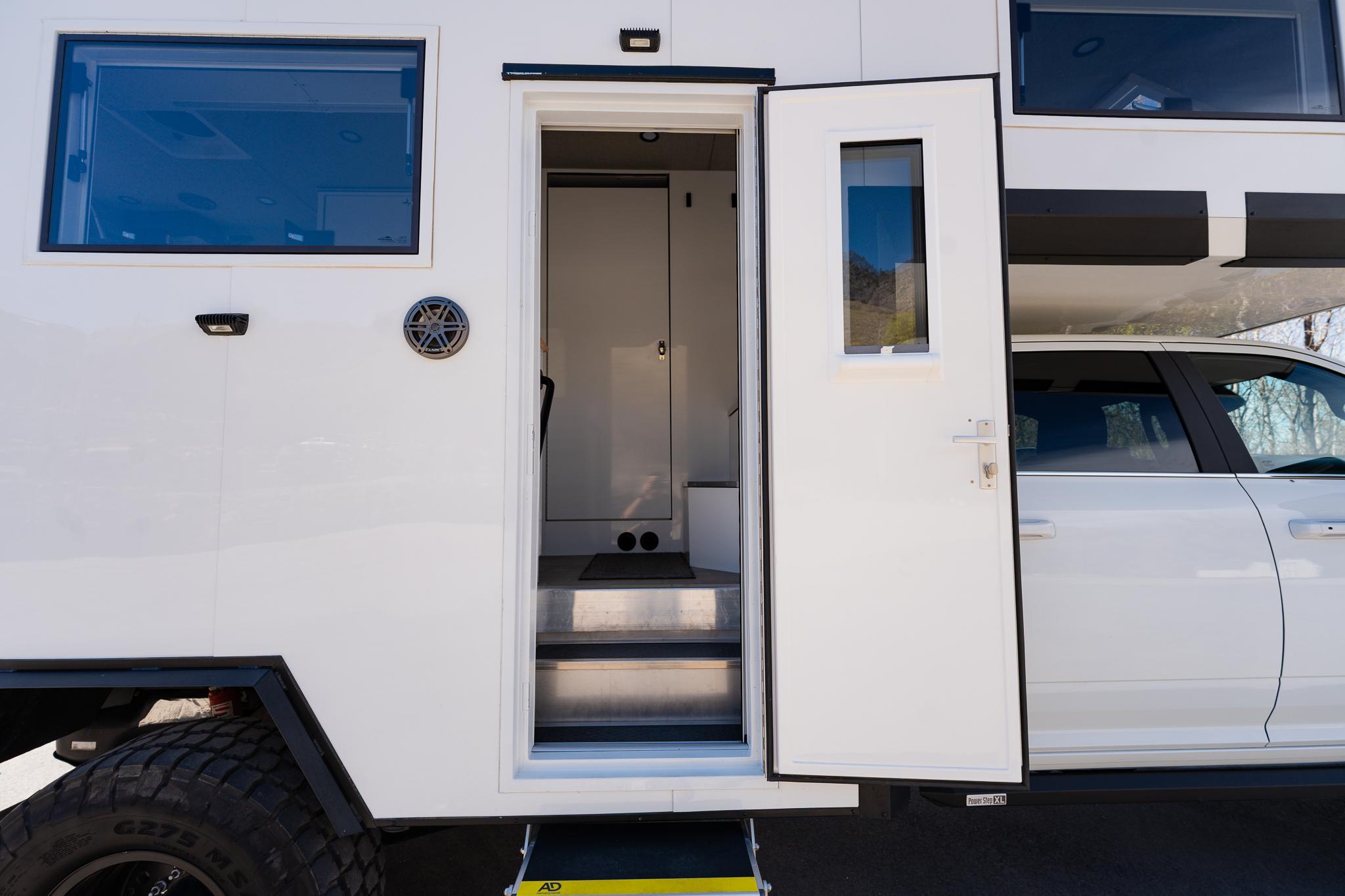

- Outbound entry door with window and screen
Electrical
- 24V house electrical system
- Dual Mastervolt 24-6000 batteries
- 460Ah total 24V battery capacity
- Mastervolt CombiMaster 3,500W inverter/charger
- 1,600W roof-mounted solar array
- Dual Mastervolt MPPT solar controllers
- Dual Mastervolt Mac Plus 50A DC-to-DC chargers
- Mastervolt Mac Plus 50A 12V converter
- CZone Touch 7 control panel
- CZone digital switching and monitoring
- NMEA 2000 component network
- LED interior lighting
Heating & Cooling
- Cruisin Comfort 24V air conditioning
- 16,000 BTU cooling capacity
- Dual evaporator system
- Aqua-Hot diesel heating and hot-water system
- Dual MaxxAir roof vent fans
- Fresh- and grey-water tank heaters
- CZone HVAC controls
Water & Bathroom
- 100-gallon fresh-water tank
- 45-gallon grey-water tank

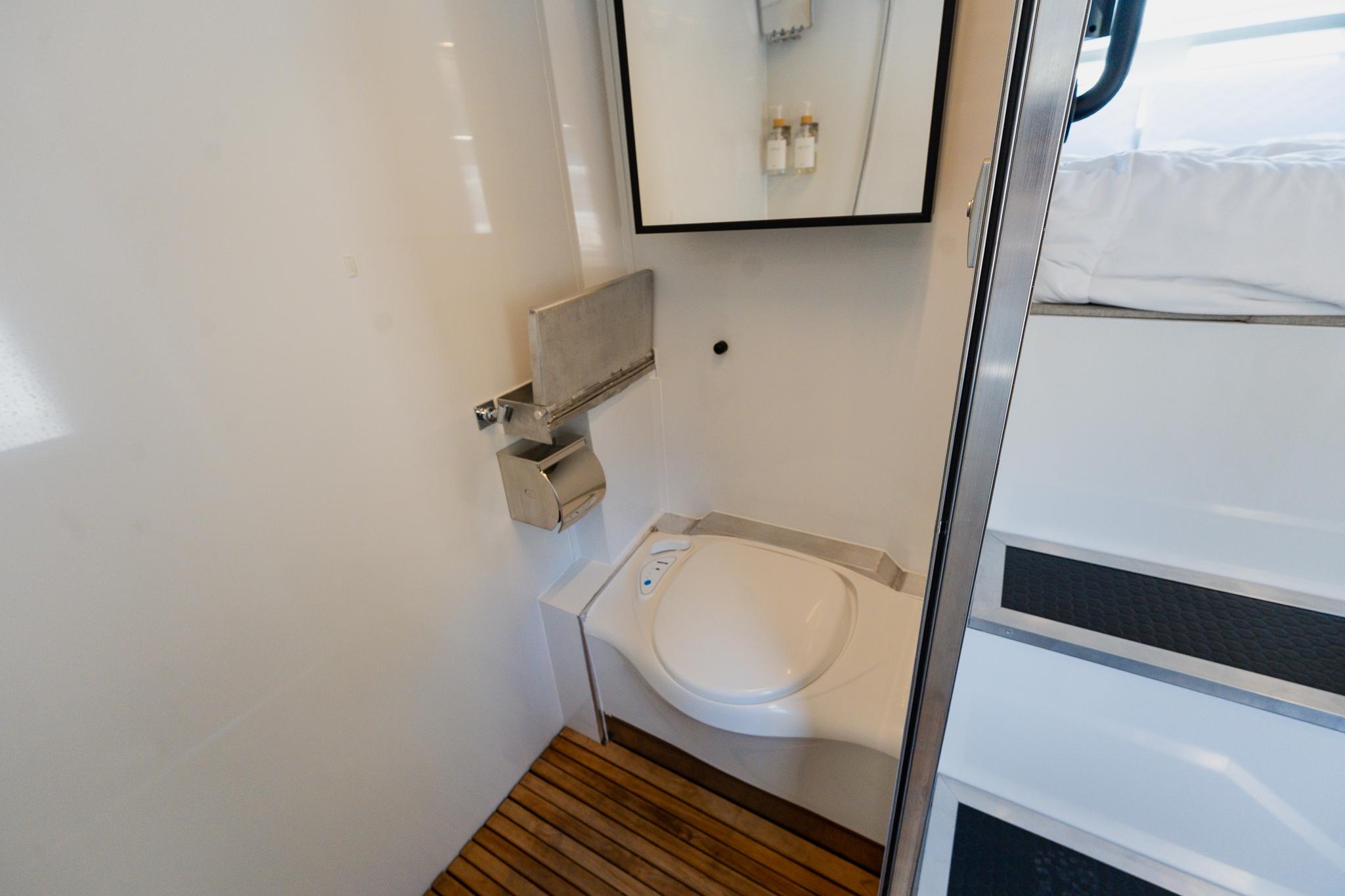

- Aluminum wet bath
- Thetford 7-gallon cassette toilet
- Vanity mirror with storage
- Heater Craft shower controls
- Variable-speed water pump
- Exterior shower connection
Kitchen & Sleeping

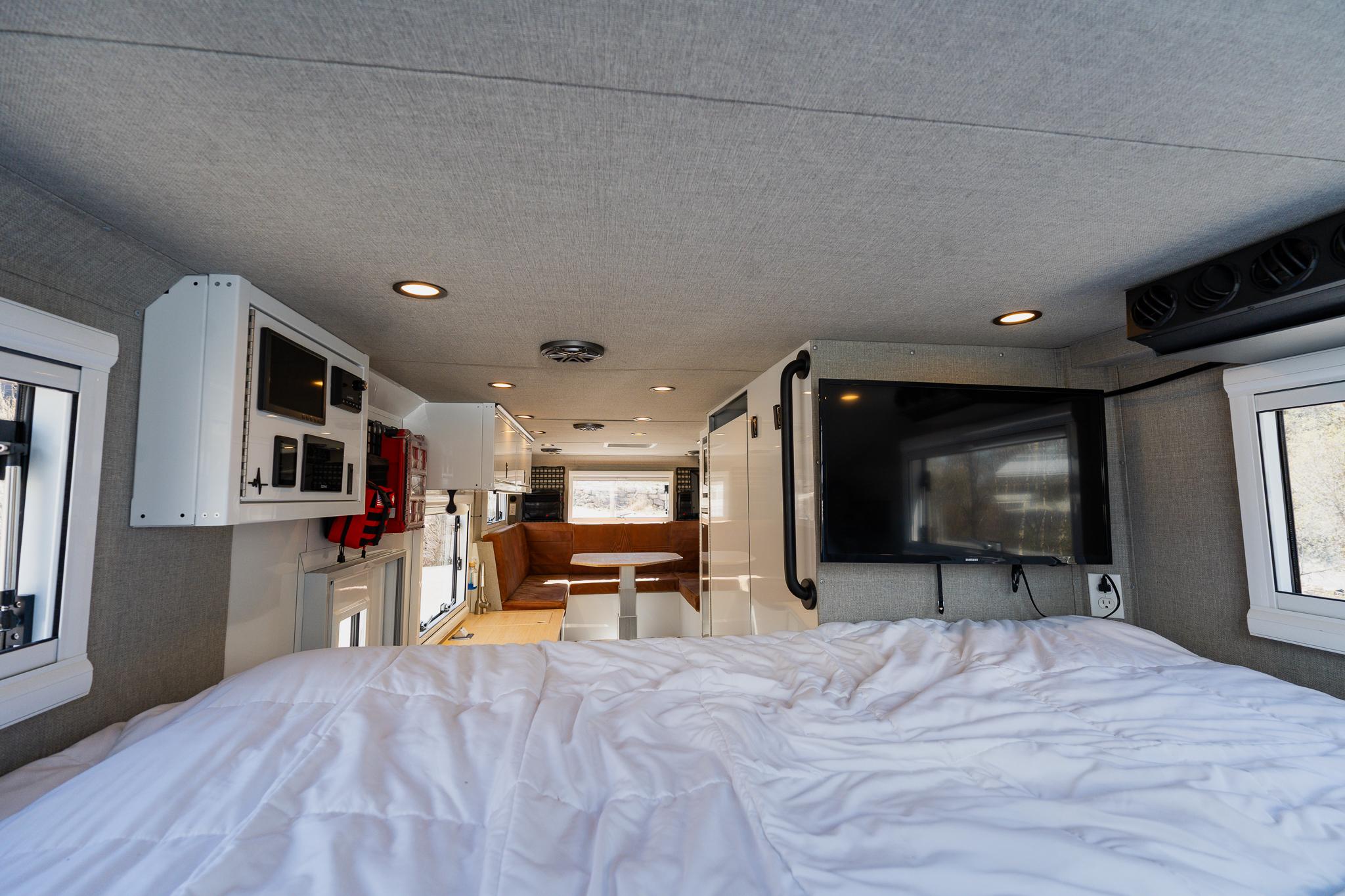

- King-size cabover bed
- Custom triple-density foam mattress
- Convertible queen-size dinette
- Powered telescoping dinette table
- Bamboo or quartz countertop
- Stainless steel galley sink
- Integrated strainer/cutting-board inserts
- True Induction dual cooktop
- Isotherm refrigerator/freezer
- Microwave/convection oven
- Full-size pull-out trash bin
- Pop-up 110V/12V charging station
- Bedside USB, 12V and 120V power
- LED bedside reading lights
- Bedside storage
- Outdoor cooking setup
Technology & Comfort
- Heated and ventilated front seats
- Heated rear seats
- Dual-zone automatic climate control
- Large factory infotainment display
- Apple CarPlay
- Android Auto
- Premium cab audio
- Backup camera
- Front and rear parking sensors
- JL Audio MediaMaster 100
- JL Audio 10 in. Stealthbox subwoofer
- Four JL Audio C2 interior speakers
- Two JL Audio marine-grade exterior speakers
- JL Audio XD600/6 amplifier
- Dual smart-TV provisions
Built and offered directly by Adrenalin Industries in Lewiston, Utah, Klause represents a nearly new opportunity to step into one of the company’s fully developed AWOL expedition builds without beginning a custom build from scratch. With just 4,446 miles, a Ram 5500 Limited foundation and extensive off-grid systems already integrated, it is ready for its next owner and the kind of travel for which the AWOL platform was designed.
